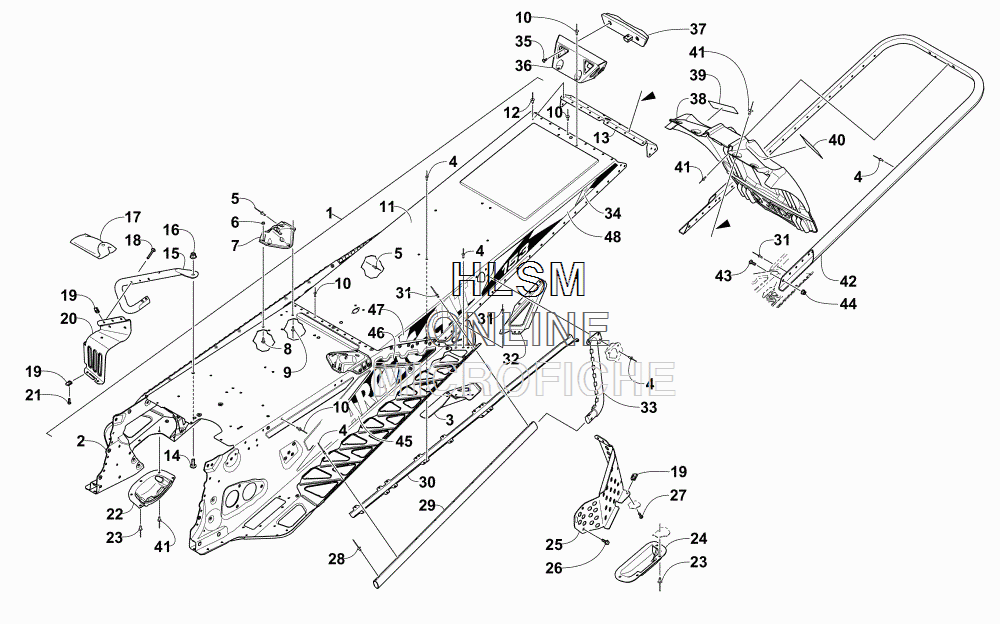

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 LTD GREEN [S2016M8HPSUSG] - 2016 года выпуска
-
№АртикулНазвание
-
–1707-969 COMPLETE CHASSIS ASSEMBLY - GREENCOMPLETE CHASSIS ASSEMBLY - GREEN
-
12707-351 TUNNEL ASSEMBLY - GREEN (INC. 2-13)TUNNEL ASSEMBLY - GREEN (INC. 2-13)
-
22707-345 TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
-
32707-342 BRACKET, MOUNTING - SUSPENSION - RIGHT - GREENBRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
32707-343 BRACKET, MOUNTING - SUSPENSION - LEFT - GREENBRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
48060-686 RIVET - ZINCRIVET - ZINC
-
51623-206 RIVETRIVET
-
68422-502 NUT, LOCKNUT, LOCK
-
72707-340 BRACKET, MOUNTING - REAR SPAR - RIGHT - GREENBRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
72707-341 BRACKET, MOUNTING - REAR SPAR - LEFT - GREENBRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
88476-512 SCREW, MACHINESCREW, MACHINE
-
91623-257 RIVETRIVET
-
108060-682 RIVET - ZINCRIVET - ZINC
-
112707-348 TUNNEL, REAR - GREENTUNNEL, REAR - GREEN
-
128060-484 RIVETRIVET
-
132707-315 END CAP, TUNNEL - GREENEND CAP, TUNNEL - GREEN
-
148476-820 SCREW, MACHINESCREW, MACHINE
-
151707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
151707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
168427-802 NUT, LOCKNUT, LOCK
-
170744-090 KIT, TOOLKIT, TOOL
-
188468-535 SCREW, MACHINESCREW, MACHINE
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
202707-004 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
202707-005 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
218470-516 SCREW, MACHINESCREW, MACHINE
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVETRIVET
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
252707-042 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
268408-613 SCREW, CAPSCREW, CAP
-
278470-520 SCREW, MACHINESCREW, MACHINE
-
281623-130 RIVETRIVET
-
292707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
300630-317 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311623-241 RIVETRIVET
-
322707-336 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
322707-337 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
332707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
332707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
340621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
358470-510 SCREW, MACHINESCREW, MACHINE
-
360730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
370609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
386606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
395611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
405611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
418061-706 RIVETRIVET
-
422707-592 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
422707-590 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
438476-620 SCREW, MACHINESCREW, MACHINE
-
448427-602 NUT, LOCKNUT, LOCK
-
452621-414 DECAL, TUNNEL - FRONT - RIGHT - GREENDECAL, TUNNEL - FRONT - RIGHT - GREEN
-
452621-415 DECAL, TUNNEL - FRONT - LEFT - GREENDECAL, TUNNEL - FRONT - LEFT - GREEN
-
462621-412 DECAL, TUNNEL - CENTER - RIGHT - GREENDECAL, TUNNEL - CENTER - RIGHT - GREEN
-
462621-413 DECAL, TUNNEL - CENTER - LEFT - GREENDECAL, TUNNEL - CENTER - LEFT - GREEN
-
472621-410 DECAL, TUNNEL - REAR - RIGHT - GREENDECAL, TUNNEL - REAR - RIGHT - GREEN
-
472621-411 DECAL, TUNNEL - REAR - LEFT - GREENDECAL, TUNNEL - REAR - LEFT - GREEN
-
482621-458 DECAL, TUNNEL - "153" - RIGHT - GREENDECAL, TUNNEL - "153" - RIGHT - GREEN
-
482621-459 DECAL, TUNNEL - "153" - LEFT - GREENDECAL, TUNNEL - "153" - LEFT - GREEN
