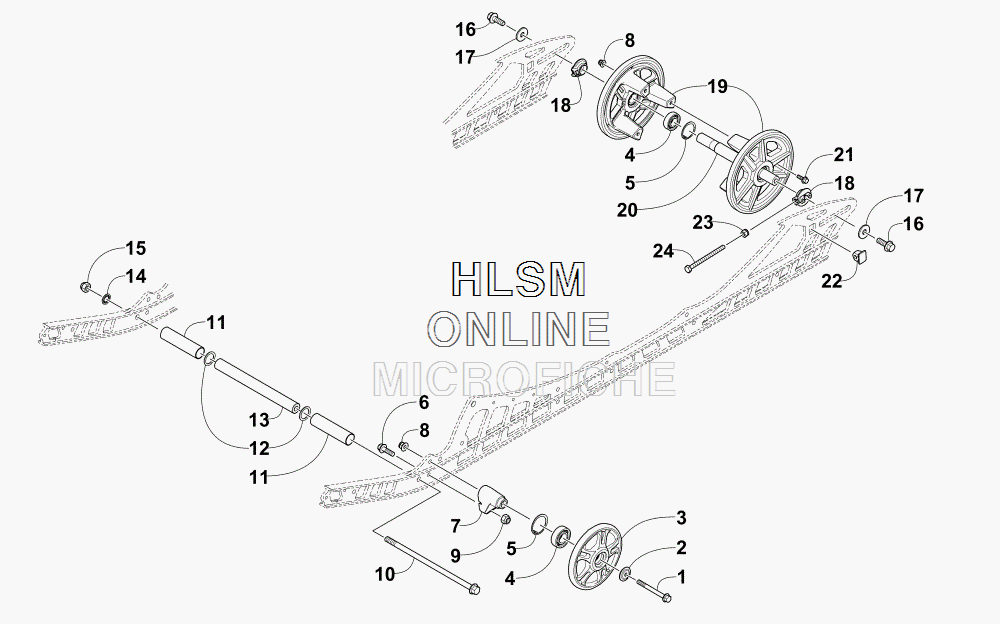

IDLER WHEEL ASSEMBLY для Arctic Cat M 8000 SE 141 GREEN [S2016M8HE2USG] - 2016 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-386 WHEEL, IDLER - BLACK (INC. TWO NO. 4-5)WHEEL, IDLER - BLACK (INC. TWO NO. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT, LOCKNUT, LOCK
-
98422-602 NUT, LOCKNUT, LOCK
-
101423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE SILVERBOLT, HFH M10-1.25X250 CL10.9 RIE SILVER
-
113604-083 SPACERSPACER
-
120623-912 WASHERWASHER
-
133604-269 AXLEAXLE
-
141623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
158422-002 NUT, LOCKNUT, LOCK
-
168408-031 SCREW, CAPSCREW, CAP
-
171623-931 WASHERWASHER
-
183604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
194604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID (INC. TWO NO. 4-5)
-
203604-640 AXLE, REARAXLE, REAR
-
218408-620 SCREW, CAPSCREW, CAP
-
223604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
238422-802 NUT, LOCKNUT, LOCK
-
241623-682 SCREW, CAPSCREW, CAP
