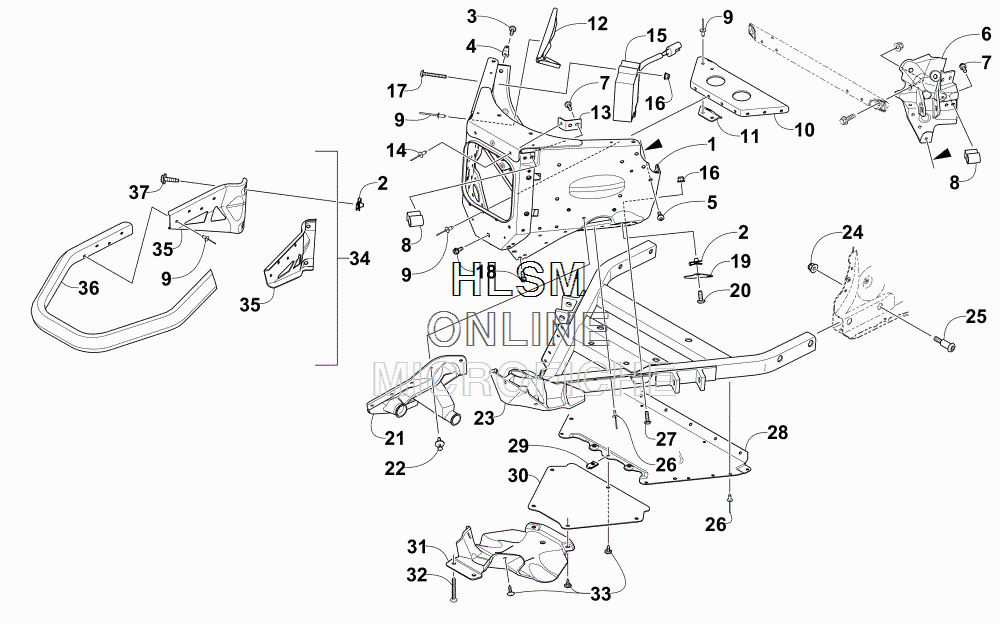

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat M 8000 SNO PRO 141 GREEN [S2016M8HSMUSG] - 2016 года выпуска
-
№АртикулНазвание
-
12707-487 PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)PANEL, FRONT - ASSEMBLY - BLACK (INC. 2-6)
-
20423-577 ...CLIP, U-NUT...CLIP, U-NUT
-
31623-683 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
42612-707 ...TAB, SPRING...TAB, SPRING
-
50423-538 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
62707-304 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK...BRACKET, SHOCK MOUNT - UPPER RIGHT - BLACK
-
62707-305 ...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK...BRACKET, SHOCK MOUNT - UPPER LEFT - BLACK
-
78413-617 SCREW, CAPSCREW, CAP
-
81607-233 BRACKET, MOUNTING - UPPER A-ARMBRACKET, MOUNTING - UPPER A-ARM
-
98060-706 RIVET - BLACKRIVET - BLACK
-
101607-565 BRACKET, REINFORCEMENTBRACKET, REINFORCEMENT
-
111607-566 BRACE, STEERING POSTBRACE, STEERING POST
-
120607-991 BRACKET, STEERING STOPBRACKET, STEERING STOP
-
131607-561 GUSSET, A-ARM MOUNTING BRACKETGUSSET, A-ARM MOUNTING BRACKET
-
141623-241 RIVETRIVET
-
150630-323 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
168427-602 NUT, LOCKNUT, LOCK
-
178477-650 SCREW, MACHINESCREW, MACHINE
-
181623-959 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
191707-568 PANEL, CLOSE-OFFPANEL, CLOSE-OFF
-
208471-616 SCREW, MACHINESCREW, MACHINE
-
211605-028 BOOT, STEERING - RIGHTBOOT, STEERING - RIGHT
-
211605-029 BOOT, STEERING - LEFTBOOT, STEERING - LEFT
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
231707-865 FRAME, FRONT - LOWER - BLACKFRAME, FRONT - LOWER - BLACK
-
248427-802 NUT, LOCKNUT, LOCK
-
251623-817 SCREW, SHOULDERSCREW, SHOULDER
-
268060-686 RIVET - ZINCRIVET - ZINC
-
278468-620 SCREW, MACHINESCREW, MACHINE
-
280607-983 BELLY PAN - CENTERBELLY PAN - CENTER
-
291623-052 CLIP, U-NUTCLIP, U-NUT
-
301607-063 PANEL, ACCESSPANEL, ACCESS
-
316606-614 BELLY PAN - FRONTBELLY PAN - FRONT
-
321623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
331623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
341707-974 BUMPER, FRONT - ASSEMBLY - GREEN (INC. EIGHT NO. 9 AND 35-36)BUMPER, FRONT - ASSEMBLY - GREEN (INC. EIGHT NO. 9 AND 35-36)
-
351707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK...BRACKET, MOUNTING - BUMPER - RIGHT - BLACK
-
351707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - BLACK...BRACKET, MOUNTING - BUMPER - LEFT - BLACK
-
361707-973 ...BUMPER, FRONT - GREEN...BUMPER, FRONT - GREEN
-
370423-609 SCREW, MACHINESCREW, MACHINE
