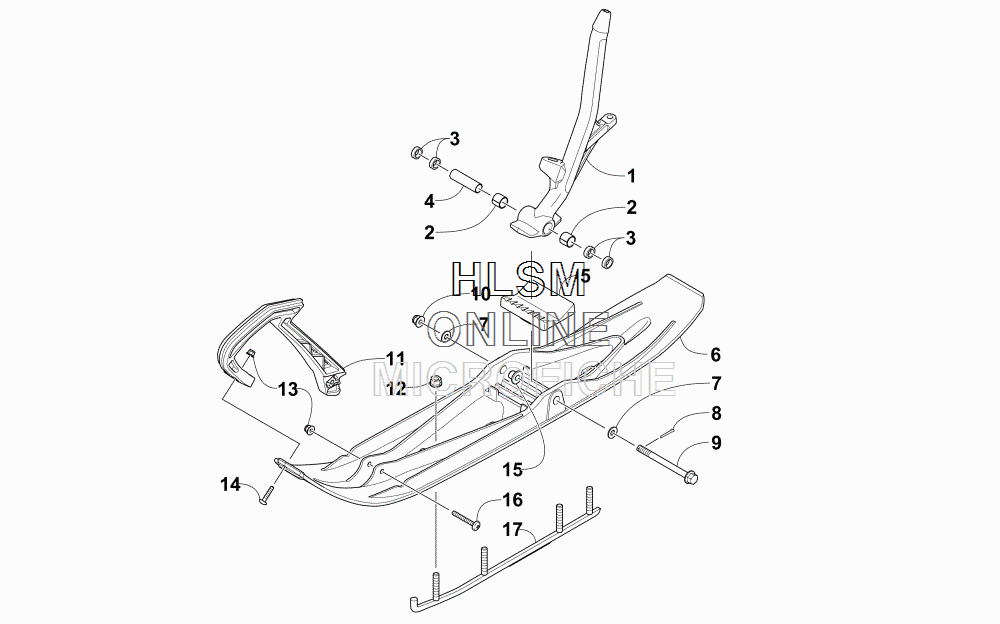

SKI AND SPINDLE ASSEMBLY для Arctic Cat M 8000 SNO PRO 162 ORANGE [S2016M8HSEUSO] - 2016 года выпуска
-
№АртикулНазвание
-
13703-434 SPINDLE, STEERING - RIGHT - WHITE (INC. TWO NO. 2)SPINDLE, STEERING - RIGHT - WHITE (INC. TWO NO. 2)
-
13703-435 SPINDLE, STEERING - LEFT - WHITE (INC. TWO NO. 2)SPINDLE, STEERING - LEFT - WHITE (INC. TWO NO. 2)
-
20603-158 ...BEARING...BEARING
-
32603-208 SPACERSPACER
-
43603-321 AXLE, SPINDLEAXLE, SPINDLE
-
53603-305 DAMPER, SKIDAMPER, SKI
-
63603-518 SKI, PLASTIC - BLACKSKI, PLASTIC - BLACK
-
71623-801 WASHERWASHER
-
80123-458 PIN, COTTERPIN, COTTER
-
92623-030 BOLT, HFH M10-1.25 X 170 CL10.9 DACBOLT, HFH M10-1.25 X 170 CL10.9 DAC
-
100423-744 NUT, LOCKNUT, LOCK
-
113603-495 HANDLE, PLASTIC - WHITEHANDLE, PLASTIC - WHITE
-
128047-486 NUT, LOCKNUT, LOCK
-
138427-602 NUT, LOCKNUT, LOCK
-
148476-625 SCREW, MACHINESCREW, MACHINE
-
152603-746 INSERTINSERT
-
168476-650 SCREW, MACHINESCREW, MACHINE
-
170703-871 WEARBARWEARBAR
