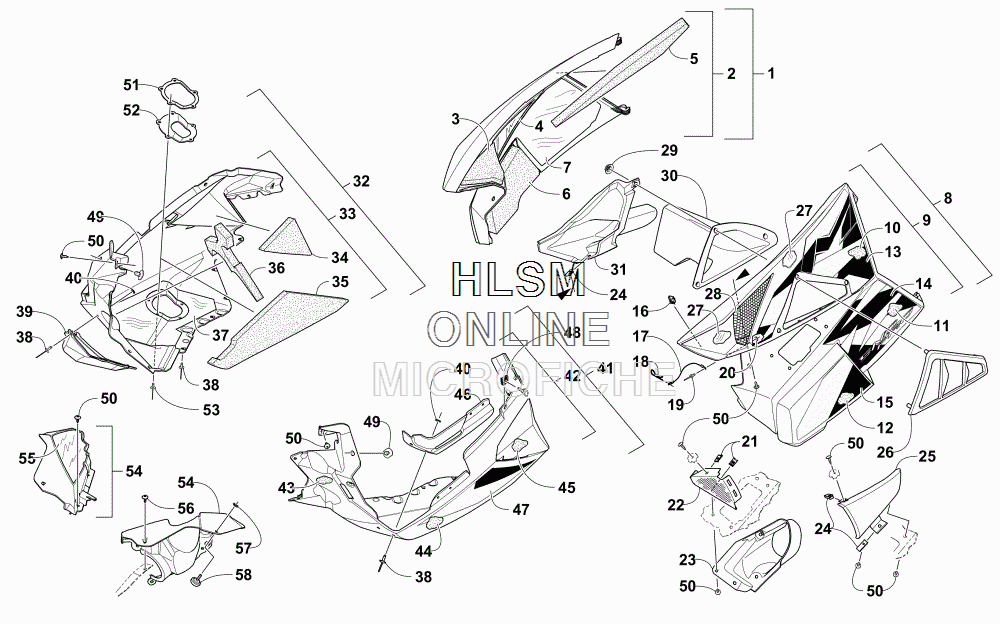

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 9000 LTD 162 BLACK [S2016M9NLEUSB] - 2016 года выпуска
-
№АртикулНазвание
-
14718-672 PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, AND 17-20)PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 13-15, AND 17-20)
-
23718-312 ...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 17-20)...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 17-20)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
84718-673 PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-20)
-
94718-557 ...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-12, AND 16-20)...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-12, AND 16-20)
-
100617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
132621-432 ...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK...DECAL, SIDE PANEL - UPPER - RIGHT - BLACK
-
132621-435 ...DECAL, SIDE PANEL - UPPER - LEFT - BLACK...DECAL, SIDE PANEL - UPPER - LEFT - BLACK
-
142621-438 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK...DECAL, SIDE PANEL - LOWER REAR - RIGHT - BLACK
-
142621-439 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK...DECAL, SIDE PANEL - LOWER REAR - LEFT - BLACK
-
152621-436 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - BLACK...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - BLACK
-
152621-437 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - BLACK...DECAL, SIDE PANEL - LOWER FRONT - LEFT - BLACK
-
161623-637 CLIP, U-NUTCLIP, U-NUT
-
170607-447 CABLECABLE
-
180605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
198060-486 RIVETRIVET
-
208050-127 WASHERWASHER
-
211623-052 CLIP, U-NUTCLIP, U-NUT
-
226606-925 SCREEN, INTAKESCREEN, INTAKE
-
232602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
241623-030 CLIP, U-NUTCLIP, U-NUT
-
252602-793 DUCT, INTAKE - OUTER - BLACKDUCT, INTAKE - OUTER - BLACK
-
260608-648 VENT, HEAT DUCTVENT, HEAT DUCT
-
270619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
285706-531 SCREEN, INTAKESCREEN, INTAKE
-
291623-469 NUT, STAMPEDNUT, STAMPED
-
300708-596 DUCT, HEATDUCT, HEAT
-
311702-367 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
324718-656 PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 33-40 AND 48)PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 33-40 AND 48)
-
333718-422 PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-40)PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-40)
-
340617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
350617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
360617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
372612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
388061-708 ...RIVET...RIVET
-
392612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
400123-802 ...WASHER...WASHER
-
414718-657 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 42-48)PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 42-48)
-
423718-789 PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 43-47)PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 43-47)
-
430617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
440617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
450617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
466606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
472621-440 DECAL, SKID PLATE - LOWER FRONT - RIGHT - BLACKDECAL, SKID PLATE - LOWER FRONT - RIGHT - BLACK
-
472621-441 DECAL, SKID PLATE - LOWER FRONT - LEFT - BLACKDECAL, SKID PLATE - LOWER FRONT - LEFT - BLACK
-
482623-005 CLIP, RETAININGCLIP, RETAINING
-
496606-592 PIN, RETAININGPIN, RETAINING
-
501623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
512612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
522612-799 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
538061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
543718-302 FASCIA, FRONT - RIGHT - BLACK (INC. 55)FASCIA, FRONT - RIGHT - BLACK (INC. 55)
-
546606-351 FASCIA, FRONT - LEFT - BLACKFASCIA, FRONT - LEFT - BLACK
-
556606-404 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
560623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
572623-001 NUT, PUSHNUT, PUSH
-
581623-999 SCREW, THUMBSCREW, THUMB
