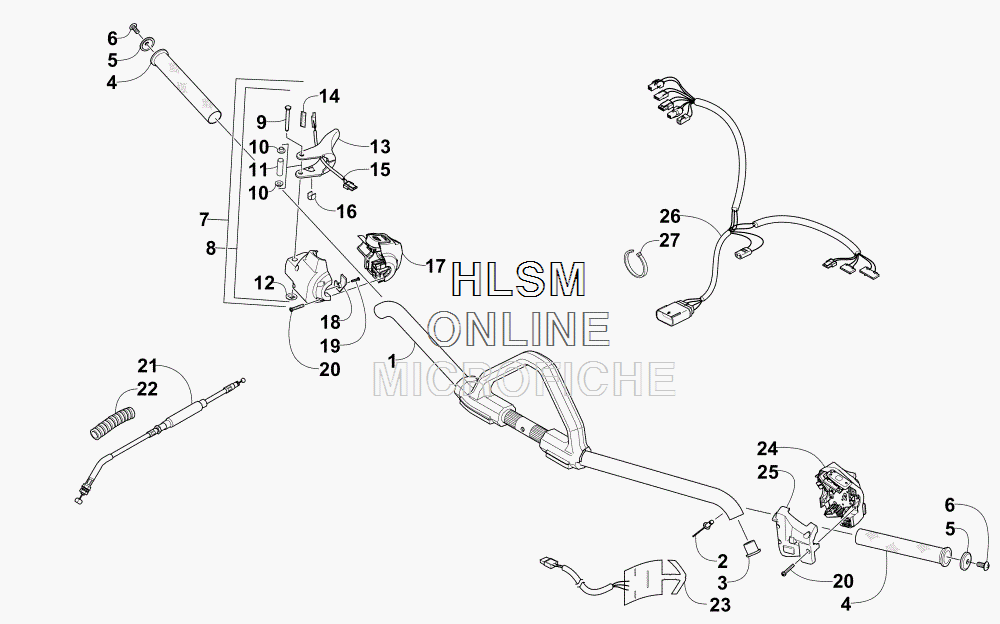

HANDLEBAR AND CONTROLS для Arctic Cat M 9000 LTD 162 GREEN [S2016M9NLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
11705-493 HANDLEBAR W/INSERTS - ASSEMBLY (INC. 2-3)HANDLEBAR W/INSERTS - ASSEMBLY (INC. 2-3)
-
28060-682 ...RIVET - ZINC...RIVET - ZINC
-
30605-945 ...INSERT, HANDLEBAR...INSERT, HANDLEBAR
-
44606-945 GRIP, HANDLEBARGRIP, HANDLEBAR
-
51623-754 WASHER, BACKINGWASHER, BACKING
-
61623-618 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70609-882 CONTROL, THROTTLE - RIGHT - REAR (INC. 8-13)CONTROL, THROTTLE - RIGHT - REAR (INC. 8-13)
-
80609-859 ...KIT, THROTTLE LEVER MOUNTING (INC. 9-12)...KIT, THROTTLE LEVER MOUNTING (INC. 9-12)
-
120123-766 ......NUT, PUSH......NUT, PUSH
-
130609-795 ...LEVER, THROTTLE...LEVER, THROTTLE
-
140617-248 PAD, INSULATORPAD, INSULATOR
-
150609-827 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
160609-595 CLIP, RETAININGCLIP, RETAINING
-
170609-884 CONTROL, RIGHT HAND - FRONT - W/REVERSECONTROL, RIGHT HAND - FRONT - W/REVERSE
-
180609-792 COVER, CONNECTORCOVER, CONNECTOR
-
190609-793 SCREW, MACHINESCREW, MACHINE
-
200609-791 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210687-227 CABLE, THROTTLECABLE, THROTTLE
-
221619-563 CONDUIT, HIGH TEMPERATURE - 3 FTCONDUIT, HIGH TEMPERATURE - 3 FT
-
230609-948 ELEMENT, HANDWARMER - RIGHTELEMENT, HANDWARMER - RIGHT
-
230609-949 ELEMENT, HANDWARMER - LEFTELEMENT, HANDWARMER - LEFT
-
240609-929 CONTROL, DIMMER - FRONTCONTROL, DIMMER - FRONT
-
250609-883 CONTROL, DIMMER - REARCONTROL, DIMMER - REAR
-
261686-637 HARNESS, HANDLEBARHARNESS, HANDLEBAR
-
270123-811 TIE, CABLE - 4 IN.TIE, CABLE - 4 IN.
-
270123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
