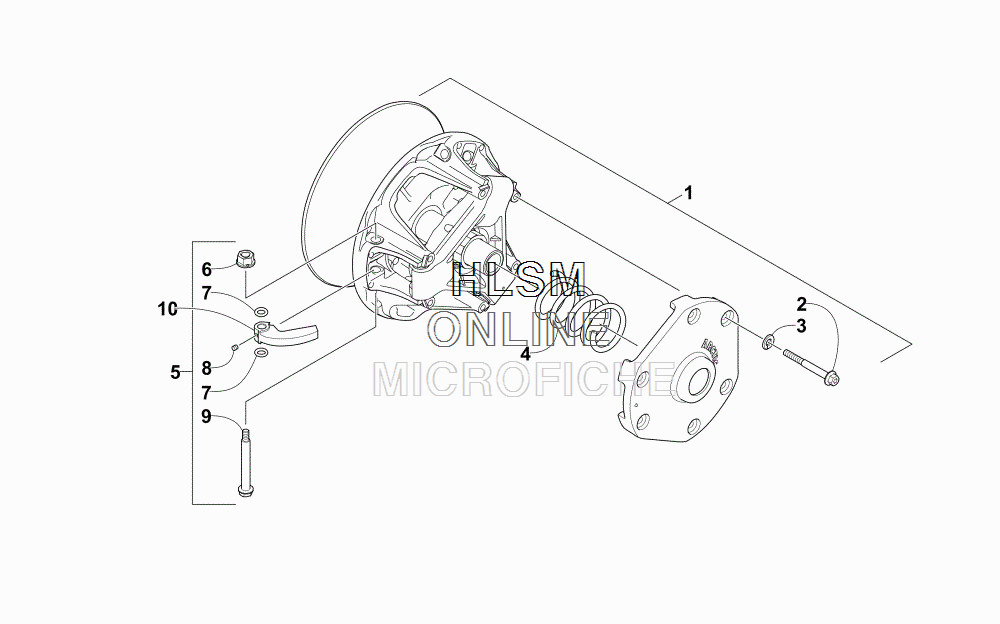

DRIVE CLUTCH для Arctic Cat PANTERA 3000 BLACK [S2016PTTTOUSB] - 2016 года выпуска

№

Артикул

Название
1

0746-861 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)

CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)

124 790 ₽
2

0646-431 ...SCREW, SHOULDER

...SCREW, SHOULDER

290 ₽
3

0646-430 ...WASHER, LOCK

...WASHER, LOCK

40 ₽
4

0646-926 SPRING, DRIVE CLUTCH - BLACK/WHITE

SPRING, DRIVE CLUTCH - BLACK/WHITE

7 900 ₽
5

4639-674 KIT, CAM ARM REPAIR - WIDE (INC. 6-9)

KIT, CAM ARM REPAIR - WIDE (INC. 6-9)

8 730 ₽
6

8048-366 ...NUT, LOCK

...NUT, LOCK

110 ₽
7

1602-692 ...O-RING

...O-RING

110 ₽
8

1623-183 ...SCREW, SET

...SCREW, SET

250 ₽
9

0646-747 ...PIN, CAM ARM

...PIN, CAM ARM

2 700 ₽
10

0746-786 ARM, CAM - W/SET SCREW (INC. 8)

ARM, CAM - W/SET SCREW (INC. 8)

1 660 ₽
10

0746-663 ARM, CAM - WIDE - W/SET SCREW (5-9,000 FT ALT.) (INC. 8)

ARM, CAM - WIDE - W/SET SCREW (5-9,000 FT ALT.) (INC. 8)

1 660 ₽
10

0746-792 ARM, CAM - WIDE - W/SET SCREW (OVER 9,000 FT ALT.) (INC. 8)

ARM, CAM - WIDE - W/SET SCREW (OVER 9,000 FT ALT.) (INC. 8)

2 070 ₽
