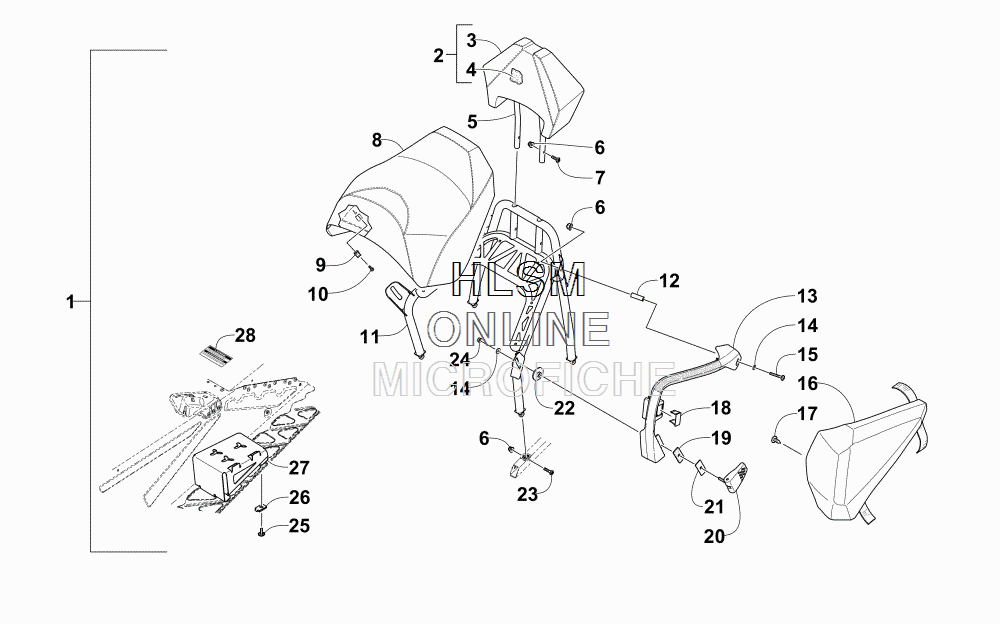

PASSENGER SEAT AND RELATED PARTS для Arctic Cat XF 6000 CROSSTREK INTERNATIONAL ORANGE EARLY BUILD [S2016ZXDCTOEO] - 2016 года выпуска
-
№АртикулНазвание
-
16639-721 KIT, 2-UP SEAT (INC. 2-28)KIT, 2-UP SEAT (INC. 2-28)
-
25706-785 ...BACKREST, PASSENGER - ASSEMBLY (INC. 3-4)...BACKREST, PASSENGER - ASSEMBLY (INC. 3-4)
-
35706-757 ......COVER, PASSENGER BACKREST......COVER, PASSENGER BACKREST
-
40717-218 ......FOAM, PASSENGER BACKREST......FOAM, PASSENGER BACKREST
-
55706-872 ...BACKREST, 2-UP SEAT - PAINTED BLACK...BACKREST, 2-UP SEAT - PAINTED BLACK
-
68427-602 ...NUT, LOCK...NUT, LOCK
-
78476-630 ...SCREW, MACHINE...SCREW, MACHINE
-
85706-758 ...SEAT, PASSENGER - ASSEMBLY...SEAT, PASSENGER - ASSEMBLY
-
91623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
108470-520 ...SCREW, MACHINE...SCREW, MACHINE
-
115706-958 ...FRAME, SEAT - BLACK...FRAME, SEAT - BLACK
-
126606-444 ...SPACER...SPACER
-
134706-532 ...HANDHOLD - RIGHT...HANDHOLD - RIGHT
-
135606-085 ...HANDHOLD - LEFT...HANDHOLD - LEFT
-
148050-217 ...WASHER...WASHER
-
152623-079 ...SCREW, MACHINE...SCREW, MACHINE
-
166606-494 ...WINDGUARD - RIGHT...WINDGUARD - RIGHT
-
166606-495 ...WINDGUARD - LEFT...WINDGUARD - LEFT
-
171623-129 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
180409-070 ...PLUG, SWITCH HOLE...PLUG, SWITCH HOLE
-
191623-735 ...WASHER, FRICTION...WASHER, FRICTION
-
205606-086 ...LEVER, HANDHOLD...LEVER, HANDHOLD
-
211623-734 ...WASHER...WASHER
-
224706-075 ...SPACER, LATCH - PAINTED BLACK...SPACER, LATCH - PAINTED BLACK
-
238468-640 ...SCREW, MACHINE...SCREW, MACHINE
-
248040-396 ...NUT, LOCK...NUT, LOCK
-
250623-797 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
261623-052 ...CLIP, U-NUT...CLIP, U-NUT
-
271707-926 ...FOOTREST, PASSENGER - RIGHT - BLACK...FOOTREST, PASSENGER - RIGHT - BLACK
-
271707-927 ...FOOTREST, PASSENGER - LEFT - BLACK...FOOTREST, PASSENGER - LEFT - BLACK
-
288611-707 ...DECAL, WARNING - PASSENGER...DECAL, WARNING - PASSENGER
