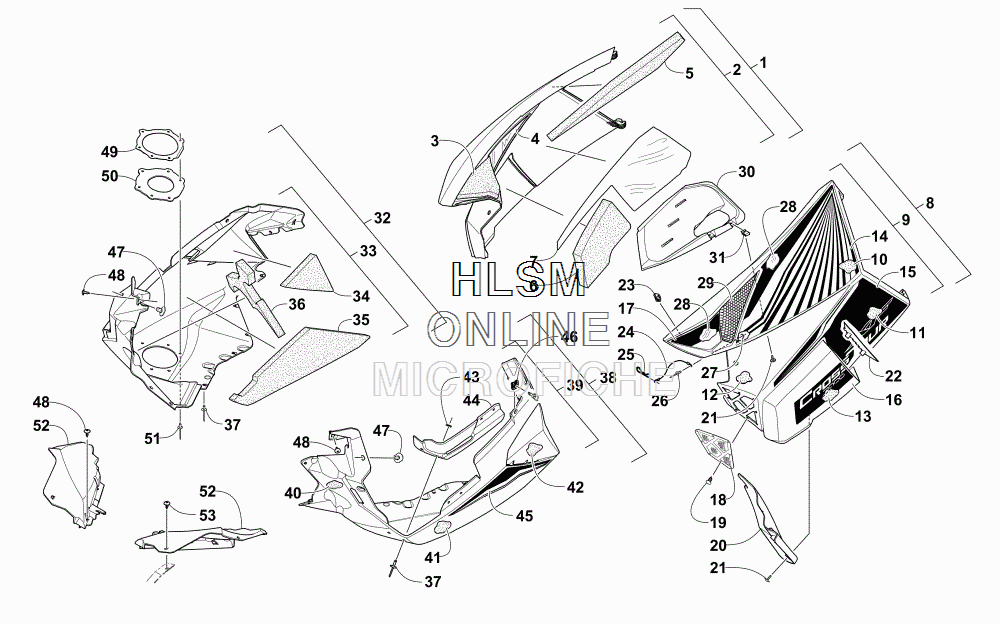

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR ORANGE EARLY BUILD [S2016XFUCTEBO] - 2016 года выпуска
-
№АртикулНазвание
-
14718-864 PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 14-17, 24-27)PANEL, SIDE - W/DECALS - RIGHT - BLACK (INC. 2-7, 14-17, 24-27)
-
23718-312 ...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7, 24-27)...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7, 24-27)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE RIGHT......FOIL, PROTECTIVE - MIDDLE RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE - LOWER - REAR - RIGHT......FOIL, PROTECTIVE - LOWER - REAR - RIGHT
-
84718-865 PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-19, 23-27)PANEL, SIDE - W/DECALS - LEFT - BLACK (INC. 9-19, 23-27)
-
94718-101 ...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-13, 18-19, 23-27)...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-13, 18-19, 23-27)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
130617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
142621-856 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
142621-857 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
152621-858 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
152621-859 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
162621-860 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
162621-861 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
172621-866 ...DECAL, SIDE PANEL - UPPER - FRONT - RIGHT...DECAL, SIDE PANEL - UPPER - FRONT - RIGHT
-
172621-867 ...DECAL, SIDE PANEL - UPPER - FRONT - LEFT...DECAL, SIDE PANEL - UPPER - FRONT - LEFT
-
182602-704 ...SCREEN, VENT...SCREEN, VENT
-
190623-269 ...CLIP, RETAINER...CLIP, RETAINER
-
202602-711 DEFLECTOR, AIRDEFLECTOR, AIR
-
210623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
222602-703 RETAINER, AIR DEFLECTORRETAINER, AIR DEFLECTOR
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
240607-447 CABLECABLE
-
250605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
268060-486 RIVETRIVET
-
278050-127 WASHERWASHER
-
280619-206 FOIL, PROTECTIVE (OPTIONAL)FOIL, PROTECTIVE (OPTIONAL)
-
295706-531 SCREEN, INTAKE (OPTIONAL)SCREEN, INTAKE (OPTIONAL)
-
301702-369 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
311623-030 CLIP, U-NUTCLIP, U-NUT
-
324718-866 PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 33-36, 45)PLATE, SKID - W/DECALS - RIGHT - BLACK (INC. 33-36, 45)
-
333718-788 ...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-36)...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 34-36)
-
340617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
350617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
360617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
378061-708 RIVETRIVET
-
384718-867 PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 37, 39-45)PLATE, SKID - W/DECALS - LEFT - BLACK (INC. 37, 39-45)
-
393718-789 ...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 37, 40-45)...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 37, 40-45)
-
400617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
410617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
420617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
430123-802 WASHERWASHER
-
446606-613 PANEL, REINFORCEMENTPANEL, REINFORCEMENT
-
452621-862 DECAL, SKID PLATE - LOWER FRONT - RIGHTDECAL, SKID PLATE - LOWER FRONT - RIGHT
-
452621-863 DECAL, SKID PLATE - LOWER FRONT - LEFTDECAL, SKID PLATE - LOWER FRONT - LEFT
-
462623-005 CLIP, RETAININGCLIP, RETAINING
-
476606-592 PIN, RETAININGPIN, RETAINING
-
481623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
492612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
502612-964 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
518061-508 RIVETRIVET
-
526606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
526606-579 FASCIA, FRONT - LEFT - BLACKFASCIA, FRONT - LEFT - BLACK
-
530623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
