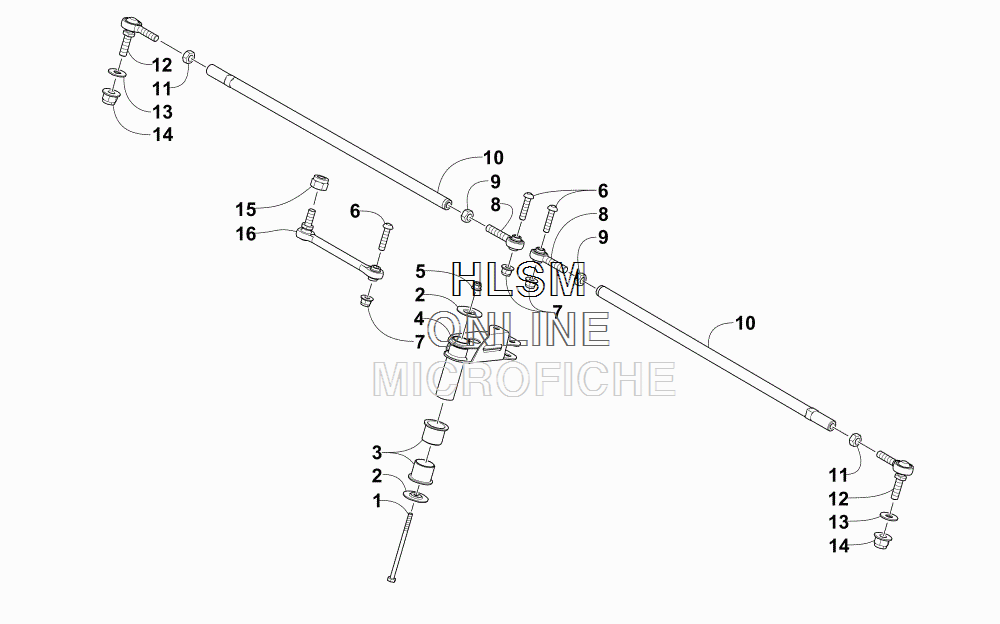

TIE ROD ASSEMBLY для Arctic Cat XF 7000 CROSS-TREK ORANGE [S2016ZXUCTUSO] - 2016 года выпуска
-
№АртикулНазвание
-
18402-600 SCREW, CAPSCREW, CAP
-
21623-807 WASHERWASHER
-
31605-161 BUSHINGBUSHING
-
41705-488 ARM, STEERINGARM, STEERING
-
58427-602 NUT, LOCKNUT, LOCK
-
62623-026 SCREW, MACHINESCREW, MACHINE
-
78427-802 NUT, LOCKNUT, LOCK
-
81605-032 BALL JOINT, TIE ROD - RIGHT-HAND THREADBALL JOINT, TIE ROD - RIGHT-HAND THREAD
-
98420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
100605-477 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
110423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
121605-019 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
131623-803 WASHERWASHER
-
148427-002 NUT, LOCKNUT, LOCK
-
158422-002 NUT, LOCKNUT, LOCK
-
161605-109 DRAGLINK, STEERING - 106 MMDRAGLINK, STEERING - 106 MM
