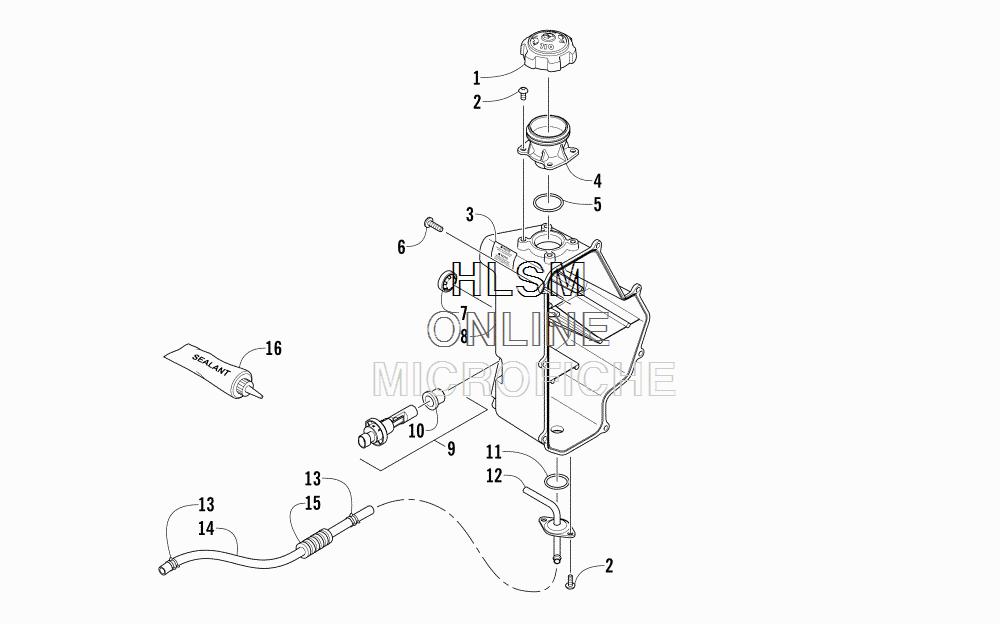

OIL TANK ASSEMBLY для Arctic Cat XF 8000 CROSSTREK ES 137 ORANGE [S2016ZXHCTUSO] - 2016 года выпуска
-
№АртикулНазвание
-
12670-447 CAP, OIL TANKCAP, OIL TANK
-
21623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
34611-532 DECAL, OIL TANKDECAL, OIL TANK
-
42670-329 NECK, OIL FILLNECK, OIL FILL
-
52623-158 O-RINGO-RING
-
61623-814 SCREW, MACHINESCREW, MACHINE
-
72670-257 GLASS, SIGHTGLASS, SIGHT
-
81770-019 TANK, OILTANK, OIL
-
90609-915 SWITCH, LEVEL - OIL (INC. 10)SWITCH, LEVEL - OIL (INC. 10)
-
100609-924 ...GROMMET...GROMMET
-
110648-441 O-RINGO-RING
-
122670-229 FITTING, OUTLETFITTING, OUTLET
-
131623-042 CLAMP, 10MMCLAMP, 10MM
-
140610-692 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
140610-693 HOSE - GREEN - 100 FTHOSE - GREEN - 100 FT
-
151619-345 CONDUIT, FLEXIBLE - 3 FTCONDUIT, FLEXIBLE - 3 FT
-
161048-063 SEALANT - 70 MLSEALANT - 70 ML
