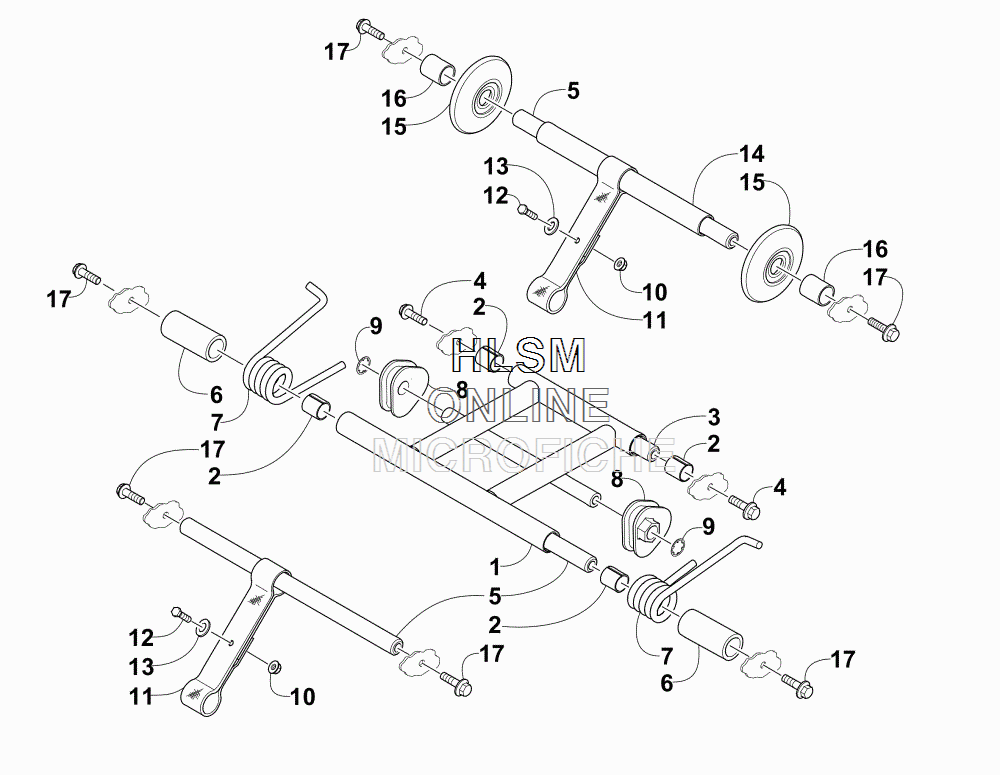

REAR SUSPENSION ARM ASSEMBLY для Arctic Cat ZR 120 GREEN INTERNATIONAL [S2016ZRAAAOSG] - 2016 года выпуска
-
№АртикулНазвание
-
12704-016 ARM, REAR SUSPENSION (INC. 2)ARM, REAR SUSPENSION (INC. 2)
-
20603-083 ...BEARING...BEARING
-
33604-606 AXLE, LOWERAXLE, LOWER
-
41623-566 SCREW, CAPSCREW, CAP
-
53604-605 AXLE, IDLERAXLE, IDLER
-
61604-715 SLEEVE, SPRINGSLEEVE, SPRING
-
70704-894 SPRING, SUSPENSION - RIGHT - PAINTED BLACKSPRING, SUSPENSION - RIGHT - PAINTED BLACK
-
70704-895 SPRING, SUSPENSION - LEFT - PAINTED BLACKSPRING, SUSPENSION - LEFT - PAINTED BLACK
-
81604-204 BLOCK, SPRING ADJUSTER - RIGHT - BLACKBLOCK, SPRING ADJUSTER - RIGHT - BLACK
-
81604-205 BLOCK, SPRING ADJUSTER - LEFT - BLACKBLOCK, SPRING ADJUSTER - LEFT - BLACK
-
90623-138 RING, RETAININGRING, RETAINING
-
108047-366 NUT, LOCKNUT, LOCK
-
111604-708 STRAP, LIMITERSTRAP, LIMITER
-
128002-042 SCREW, CAPSCREW, CAP
-
138050-222 WASHERWASHER
-
141604-564 SPACERSPACER
-
150300-180 WHEEL, IDLERWHEEL, IDLER
-
161604-565 SPACERSPACER
-
178020-131 SCREW, CAPSCREW, CAP
