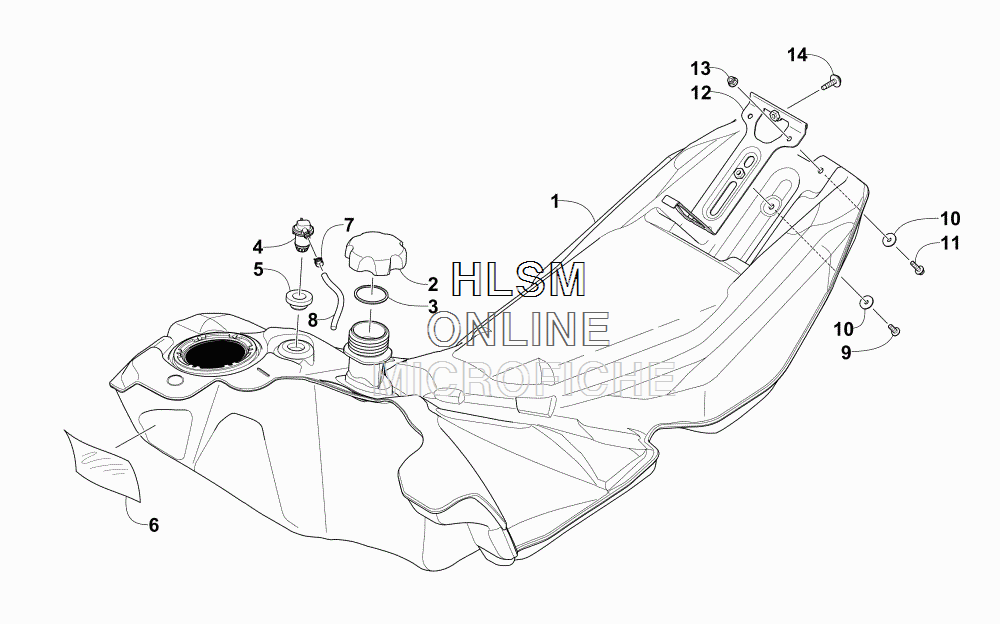

GAS TANK ASSEMBLY для Arctic Cat ZR 4000 RR GREEN INTERNATIONAL [S2016ZRCRROSG] - 2016 года выпуска
-
№АртикулНазвание
-
10770-961 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
20470-438 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
60619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
71623-233 CLAMP, HOSECLAMP, HOSE
-
86101-009 HOSE - 50 FTHOSE - 50 FT
-
86101-001 HOSE - 100 FTHOSE - 100 FT
-
98410-616 SCREW, CAPSCREW, CAP
-
108050-223 WASHER, FLATWASHER, FLAT
-
118410-620 SCREW, MACHINESCREW, MACHINE
-
125706-098 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
138427-602 NUT, LOCKNUT, LOCK
-
140423-609 SCREW, MACHINESCREW, MACHINE
