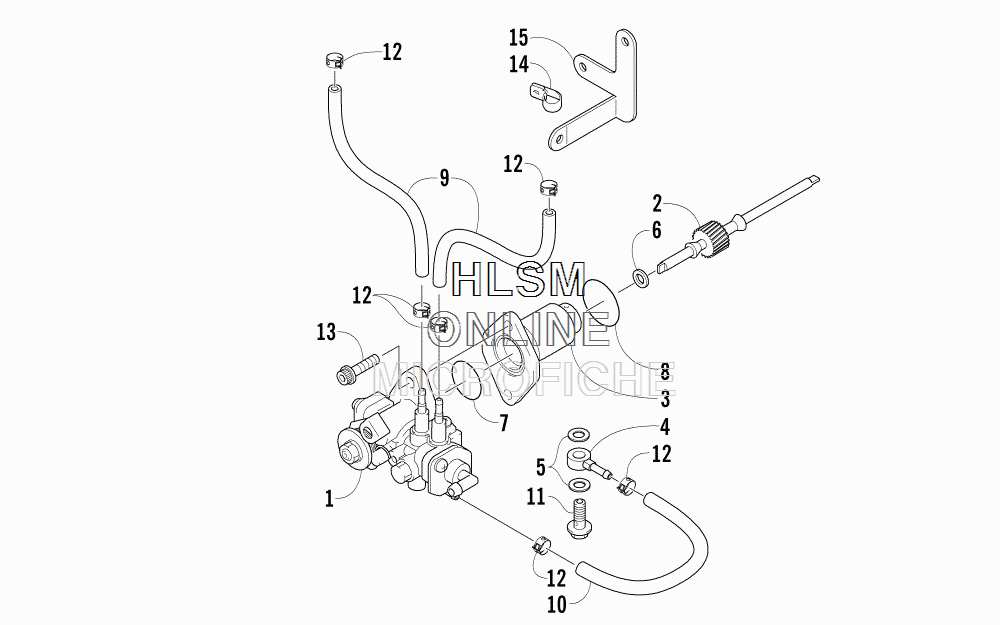

OIL PUMP для Arctic Cat ZR 4000 RR GREEN [S2016ZRCRRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
13007-694 PUMP, OIL ASSEMBLYPUMP, OIL ASSEMBLY
-
23006-354 GEAR, DRIVENGEAR, DRIVEN
-
33004-804 RETAINER, INPUT SHAFTRETAINER, INPUT SHAFT
-
43004-805 VALVE, CHECKVALVE, CHECK
-
53402-009 WASHER, DRIVENWASHER, DRIVEN
-
63005-049 SHIM, OIL PUMP SHAFTSHIM, OIL PUMP SHAFT
-
73008-030 O-RINGO-RING
-
83005-126 O-RINGO-RING
-
93008-035 HOSEHOSE
-
103005-357 HOSEHOSE
-
113004-346 BOLT, UNIONBOLT, UNION
-
123008-037 CLAMP, HOSECLAMP, HOSE
-
133007-471 BOLTBOLT
-
143005-696 CLAMPCLAMP
-
153007-472 BRACKET, CABLEBRACKET, CABLE
