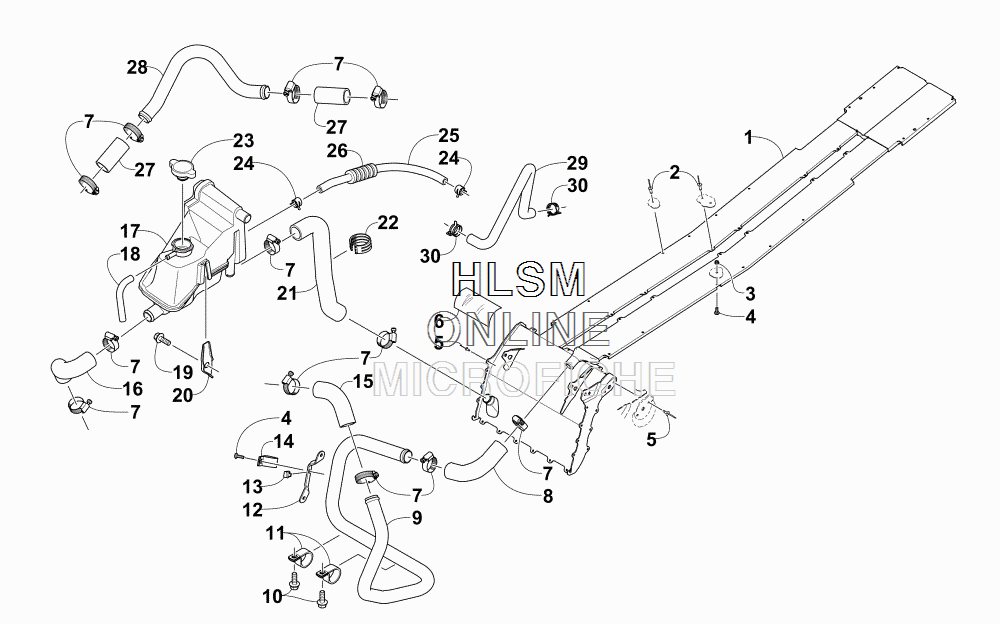

COOLING ASSEMBLY для Arctic Cat ZR 5000 LXR ORANGE [S2016ZRNLXUSO] - 2016 года выпуска
-
№АртикулНазвание
-
10713-081 EXCHANGER, HEATEXCHANGER, HEAT
-
28060-682 RIVET - ZINCRIVET - ZINC
-
38422-502 NUT, LOCKNUT, LOCK
-
48476-516 SCREW, MACHINESCREW, MACHINE
-
58060-686 RIVET - ZINCRIVET - ZINC
-
60619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
72623-088 CLAMP, HOSECLAMP, HOSE
-
80610-866 HOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGERHOSE, COOLANT - COOLANT TUBE/HEAT EXCHANGER
-
90613-050 TUBE, COOLANT - ENGINE/HEAT EXCHANGERTUBE, COOLANT - ENGINE/HEAT EXCHANGER
-
108409-017 SCREW, CAPSCREW, CAP
-
111623-916 CLAMP, ROUTINGCLAMP, ROUTING
-
120608-668 BRACKET, MOUNTING - COOLANT TUBEBRACKET, MOUNTING - COOLANT TUBE
-
131623-637 CLIP, U-NUTCLIP, U-NUT
-
140423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
150610-865 HOSE, COOLANT - THERMOSTAT/COOLANT TUBEHOSE, COOLANT - THERMOSTAT/COOLANT TUBE
-
160610-849 HOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - ENGINE/COOLANT-OIL SEPARATOR TANK
-
170613-072 TANK, COOLANT-OIL SEPARATOR - ASSEMBLYTANK, COOLANT-OIL SEPARATOR - ASSEMBLY
-
180613-120 HOSE, VENTHOSE, VENT
-
198408-026 SCREW, CAPSCREW, CAP
-
200613-048 BRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANKBRACKET, MOUNTING - COOLANT-OIL SEPARATOR TANK
-
210610-842 HOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANKHOSE, COOLANT - HEAT EXCHANGER/COOLANT-OIL SEPARATOR TANK
-
220623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
232606-284 CAPCAP
-
241623-278 CLAMP, HOSECLAMP, HOSE
-
250610-854 HOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODYHOSE, COOLANT - COOLANT-OIL SEPARATOR TANK/THROTTLE BODY
-
260619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
270610-840 HOSEHOSE
-
280613-049 TUBE, COOLANT - CYLINDER HEAD/PUMPTUBE, COOLANT - CYLINDER HEAD/PUMP
-
290610-879 HOSE, COOLANT - CYLINDER HEAD/THROTTLE BODYHOSE, COOLANT - CYLINDER HEAD/THROTTLE BODY
-
303007-189 CLIP, WATER BYPASS HOSE - NO. 3CLIP, WATER BYPASS HOSE - NO. 3
