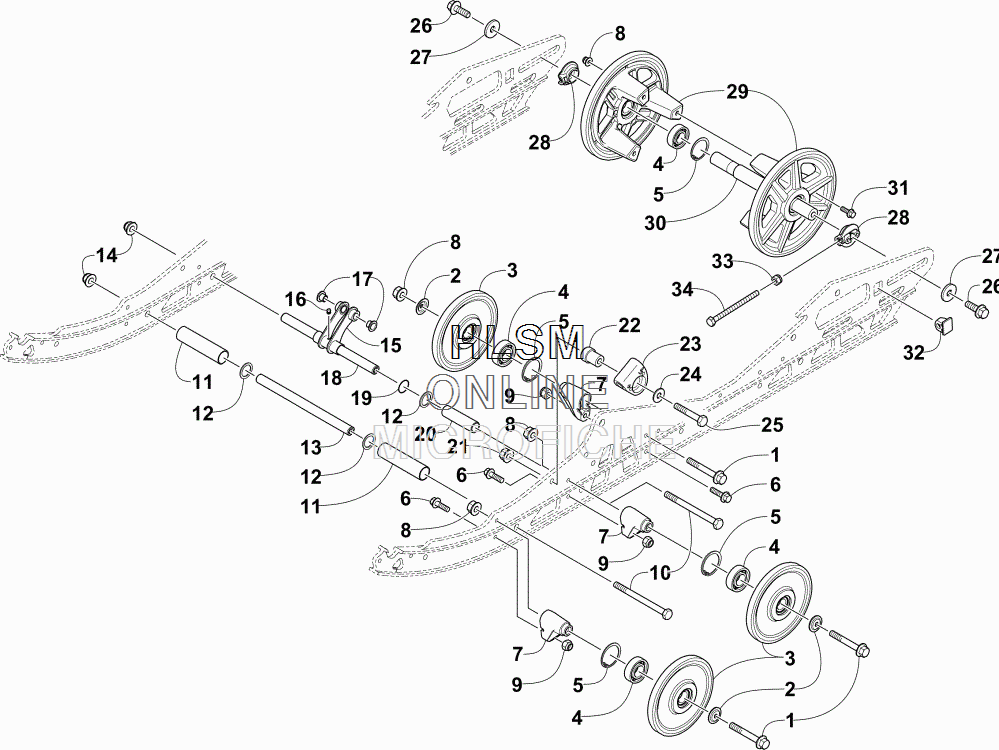

IDLER WHEEL ASSEMBLY для Arctic Cat ZR 6000 RR GREEN EARLY BUILD [S2016ZRDRREBG] - 2016 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-039 WHEEL, IDLERWHEEL, IDLER
-
43604-033 BEARINGBEARING
-
50623-946 RING, RETAININGRING, RETAINING
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT, LOCKNUT, LOCK
-
98422-602 NUT, LOCKNUT, LOCK
-
101423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE SILVERBOLT, HFH M10-1.25X250 CL10.9 RIE SILVER
-
113604-083 SPACERSPACER
-
120623-912 WASHERWASHER
-
133604-798 AXLEAXLE
-
142623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
-
152704-208 PIVOT, SHOCK (INC. 16-17)PIVOT, SHOCK (INC. 16-17)
-
169916-963 ...FITTING, GREASE...FITTING, GREASE
-
170104-386 ...BUSHING...BUSHING
-
183604-269 AXLEAXLE
-
192604-698 O-RINGO-RING
-
203604-581 SPACERSPACER
-
218427-802 NUT, LOCKNUT, LOCK
-
223604-204 BLOCK, SLIDEBLOCK, SLIDE
-
232604-515 SLIDE, SPRINGSLIDE, SPRING
-
248450-133 WASHERWASHER
-
258408-855 SCREW, CAPSCREW, CAP
-
268413-031 SCREW, CAPSCREW, CAP
-
271623-931 WASHERWASHER
-
283604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
294604-138 WHEEL, IDLER - TRI-HUB (INC. TWO NO. 4-5)WHEEL, IDLER - TRI-HUB (INC. TWO NO. 4-5)
-
303604-640 AXLE, REARAXLE, REAR
-
318408-620 SCREW, CAPSCREW, CAP
-
323604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
338422-802 NUT, LOCKNUT, LOCK
-
341623-682 SCREW, CAPSCREW, CAP
