SUSPENSION FRONT - SHOCK ABSORBER для Arctic Cat ZR 6000 SNO PRO ES 137 GREEN [S2016ZXDSPUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-3703-343 SHOCK ABSORBERSHOCK ABSORBER
-
11604-222 BUSHINGBUSHING
-
22604-223 SLEEVESLEEVE
-
33603-366 CAP, AIR VALVECAP, AIR VALVE
-
43603-293 KIT, SEAL/CAP REBUILD (INC. 7)KIT, SEAL/CAP REBUILD (INC. 7)
-
53603-333 END CAP, SHOCKEND CAP, SHOCK
-
63603-359 DECAL, PSIDECAL, PSI
-
73603-018 NUT, LOCKNUT, LOCK
-
83603-290 BODY, SHOCK - UPPERBODY, SHOCK - UPPER
-
93603-369 DECAL, "FLOAT 3 FOX"DECAL, "FLOAT 3 FOX"
-
103603-365 DECAL, "PERFORMANCE SERIES"DECAL, "PERFORMANCE SERIES"
-
111603-940 SCREW, SETSCREW, SET
-
121604-315 BALL, BLEEDBALL, BLEED
-
133603-291 BEARING - ASSEMBLYBEARING - ASSEMBLY
-
143603-287 ROD, SHOCKROD, SHOCK
-
152603-522 GUIDE, SPRINGGUIDE, SPRING
-
162603-656 SPRINGSPRING
-
170603-540 WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093WASHER, TOP OUT - 1.125OD X 0.378ID X 0.093
-
182603-045 VALVE, .700 DIA X .010VALVE, .700 DIA X .010
-
190603-334 VALVE, .800X.008 (3/8ID)VALVE, .800X.008 (3/8ID)
-
200603-337 VALVE, 0.900 X 0.008 IN.VALVE, 0.900 X 0.008 IN.
-
210603-341 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
220603-343 VALVE, 1.100 X 0.008 IN.VALVE, 1.100 X 0.008 IN.
-
230603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
240603-350 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
250603-348 VALVE, 1.300 X 0.006 IN.VALVE, 1.300 X 0.006 IN.
-
263603-345 VALVE, 1.300 X 0.010 IN.VALVE, 1.300 X 0.010 IN.
-
273603-397 PISTON, 3-PORTPISTON, 3-PORT
-
280603-895 VALVE, 0.800 X 0.004 IN.VALVE, 0.800 X 0.004 IN.
-
290603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
300603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
312604-966 WASHER, TOP OUTWASHER, TOP OUT
-
323603-023 PISTON, FLOATING - W/O-RINGPISTON, FLOATING - W/O-RING
-
333603-286 BODY, SHOCK - LOWERBODY, SHOCK - LOWER
-
343603-332 END CAP, SHOCK (INC. 35-36)END CAP, SHOCK (INC. 35-36)
-
351604-428 ...PLUG, RUBBER - VALVE...PLUG, RUBBER - VALVE
-
362603-338 ...SCREW, SET...SCREW, SET
-
372603-337 BALL, AIR VALVEBALL, AIR VALVE
-
384639-012 FLUID, FLOAT SHOCK - 8 OZFLUID, FLOAT SHOCK - 8 OZ
-
395639-530 OIL, SHOCK - 1 QTOIL, SHOCK - 1 QT
Все узлы модели:
- A-ARM AND SWAY BAR ASSEMBLY
- BATTERY ASSEMBLY
- BELT GUARD ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SHOCK ABSORBER ASSEMBLY
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD AND AIR INTAKE ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY

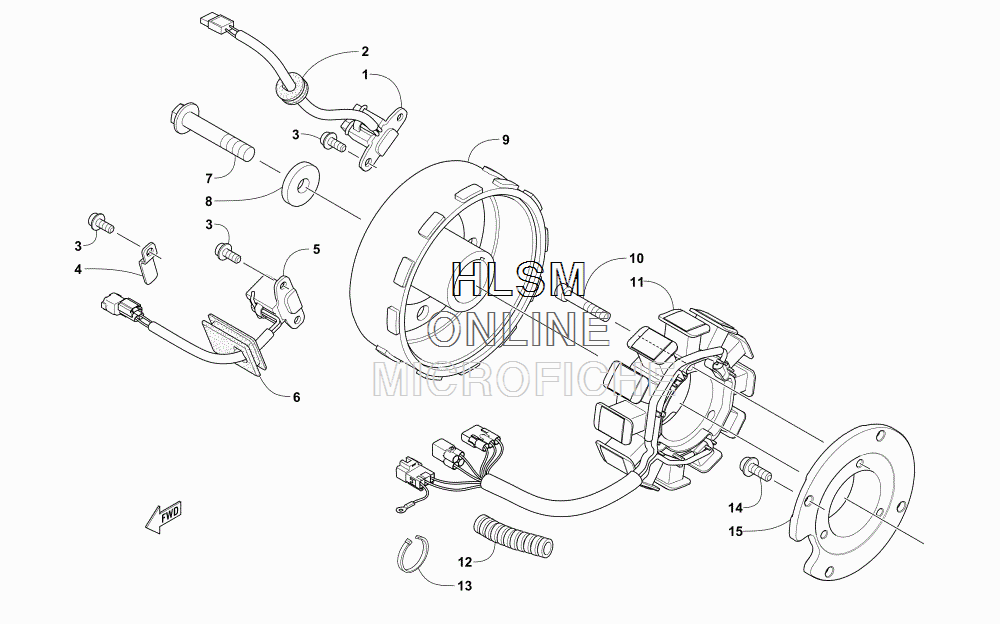

- MAGNETO
