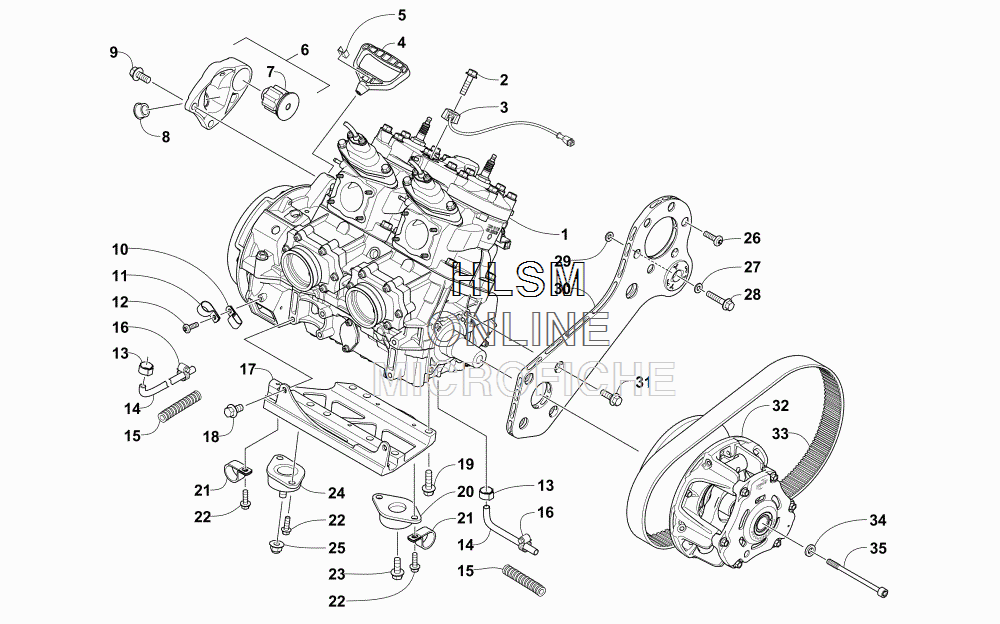

ENGINE AND RELATED PARTS для Arctic Cat ZR 6000 SNO PRO ES 137 ORANGE [S2016ZXDSPUSO] - 2016 года выпуска
-
№АртикулНазвание
-
10962-037 ENGINE, LONG BLOCKENGINE, LONG BLOCK
-
10962-035 ENGINE, SHORT BLOCKENGINE, SHORT BLOCK
-
20923-049 SCREW, CAPSCREW, CAP
-
30902-024 SENSOR, KNOCKSENSOR, KNOCK
-
40636-363 HANDLE, RECOILHANDLE, RECOIL
-
50606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
60708-582 BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)BRACKET, ENGINE MOUNTING - MAG (INC. 7-8)
-
70608-630 ...MOUNT, ENGINE...MOUNT, ENGINE
-
80608-633 ...BUSHING...BUSHING
-
98409-026 SCREW, CAPSCREW, CAP
-
101623-733 CLAMP, ROUTINGCLAMP, ROUTING
-
111623-675 CLAMP, ROUTINGCLAMP, ROUTING
-
128471-616 SCREW, MACHINESCREW, MACHINE
-
130610-563 CLAMP, HOSECLAMP, HOSE
-
140610-779 HOSE, COOLANT - THROTTLE BODYHOSE, COOLANT - THROTTLE BODY
-
150619-139 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
160623-373 CLAMP, HOSECLAMP, HOSE
-
170708-598 PLATE, ENGINE MOUNTING - LOWERPLATE, ENGINE MOUNTING - LOWER
-
188409-821 SCREW, CAPSCREW, CAP
-
198409-036 SCREW, CAPSCREW, CAP
-
200608-496 MOUNT, ENGINEMOUNT, ENGINE
-
211623-080 CLAMP, ROUTINGCLAMP, ROUTING
-
221623-944 SCREW, SHOULDERSCREW, SHOULDER
-
238409-017 SCREW, CAPSCREW, CAP
-
240708-587 MOUNT, ENGINE - LOWERMOUNT, ENGINE - LOWER
-
258427-002 NUT, LOCKNUT, LOCK
-
268468-617 SCREW, MACHINESCREW, MACHINE
-
278050-242 WASHERWASHER
-
281623-932 SCREW, CAPSCREW, CAP
-
290623-987 WASHER, SPRINGWASHER, SPRING
-
300708-622 PLATE, ENGINE MOUNTING - PTOPLATE, ENGINE MOUNTING - PTO
-
311623-937 SCREW, CAPSCREW, CAP
-
320746-862 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
330627-083 BELT, DRIVEBELT, DRIVE
-
341623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
351623-792 BOLT, CLUTCHBOLT, CLUTCH
