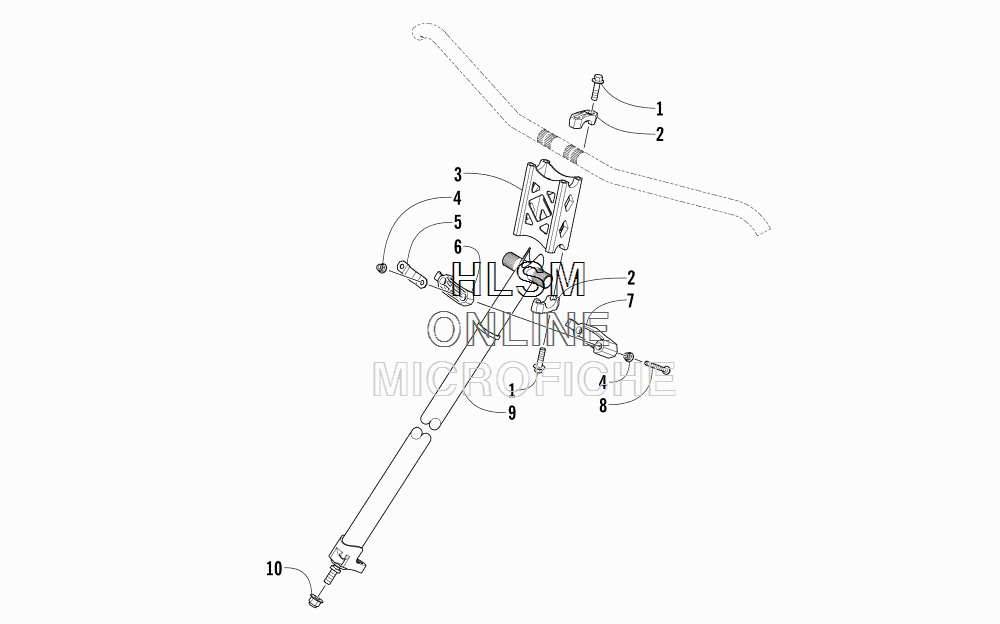

STEERING POST ASSEMBLY для Arctic Cat ZR 7000 EL TIGRE LTD 129 BLACK [S2016ZRUEEUSB] - 2016 года выпуска
-
№АртикулНазвание
-
18408-830 SCREW, CAPSCREW, CAP
-
21705-461 CAP, RISER BLOCK - BLACKCAP, RISER BLOCK - BLACK
-
31705-423 BLOCK, RISER - BLACKBLOCK, RISER - BLACK
-
48427-602 NUT, LOCKNUT, LOCK
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-043 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
71605-156 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
82623-070 SCREW, MACHINESCREW, MACHINE
-
91705-309 POST, STEERINGPOST, STEERING
-
102623-076 NUT, LOCK - W/WASHERNUT, LOCK - W/WASHER
