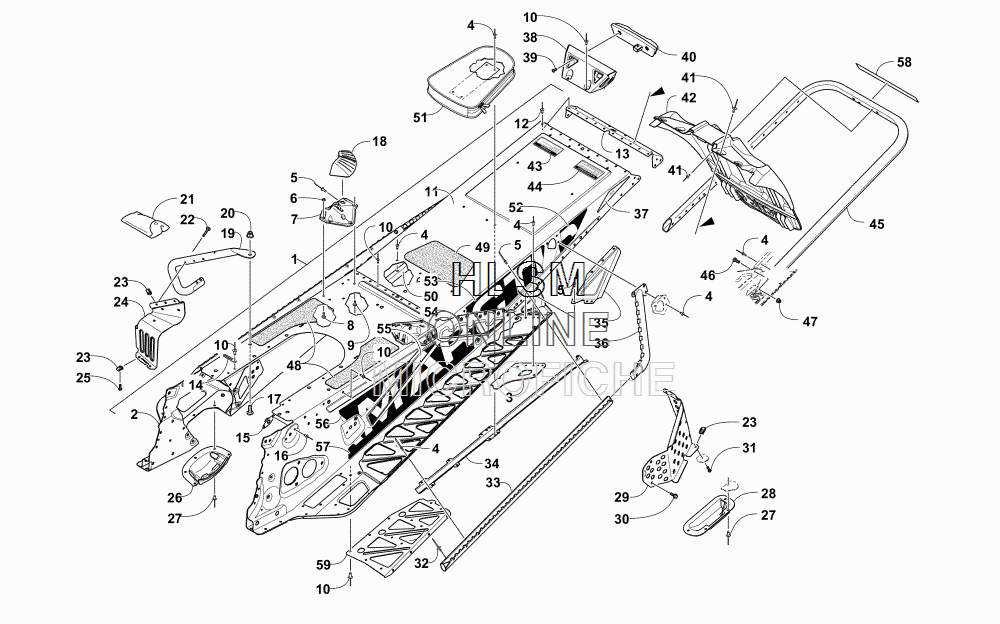

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat ZR 7000 RR 129 [S2016ZRURRUSG] - 2016 года выпуска
-
№АртикулНазвание
-
-2707-421 COMPLETE CHASSIS ASSEMBLY - BLACKCOMPLETE CHASSIS ASSEMBLY - BLACK
-
12707-514 TUNNEL ASSEMBLY - BLACK (INC. 2-13)TUNNEL ASSEMBLY - BLACK (INC. 2-13)
-
22707-512 ...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - BLACK (INC. 3-4)
-
31707-916 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK......BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
31707-917 ......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK......BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
48060-706 ......RIVET - BLACK......RIVET - BLACK
-
51623-241 ...RIVET...RIVET
-
68422-502 ...NUT, LOCK...NUT, LOCK
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK...BRACKET, MOUNTING - REAR SPAR - RIGHT - BLACK
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK...BRACKET, MOUNTING - REAR SPAR - LEFT - BLACK
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-702 ...RIVET - BLACK...RIVET - BLACK
-
112707-395 ...TUNNEL, REAR - BLACK...TUNNEL, REAR - BLACK
-
128060-504 ...RIVET...RIVET
-
131707-725 ...END CAP, TUNNEL - BLACK...END CAP, TUNNEL - BLACK
-
141623-984 CLAMP, ROUTINGCLAMP, ROUTING
-
150608-631 PLATE, RETAININGPLATE, RETAINING
-
168060-708 RIVET - BLACKRIVET - BLACK
-
178476-820 SCREW, MACHINESCREW, MACHINE
-
186606-664 SUPPORT, GAS TANK - RIGHTSUPPORT, GAS TANK - RIGHT
-
186606-665 SUPPORT, GAS TANK - LEFTSUPPORT, GAS TANK - LEFT
-
191707-454 SUPPORT, FOOTREST - RIGHT - BLACKSUPPORT, FOOTREST - RIGHT - BLACK
-
191707-455 SUPPORT, FOOTREST - LEFT - BLACKSUPPORT, FOOTREST - LEFT - BLACK
-
208427-802 NUT, LOCKNUT, LOCK
-
210744-088 KIT, TOOLKIT, TOOL
-
228468-535 SCREW, MACHINESCREW, MACHINE
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
241707-556 FOOTREST - RIGHT - BLACKFOOTREST - RIGHT - BLACK
-
241707-557 FOOTREST - LEFT - BLACKFOOTREST - LEFT - BLACK
-
258470-516 SCREW, MACHINESCREW, MACHINE
-
261607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
278061-708 RIVETRIVET
-
280607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
292707-044 SHIELD, BRAKE DISC - BLACKSHIELD, BRAKE DISC - BLACK
-
308408-613 SCREW, CAPSCREW, CAP
-
318470-520 SCREW, MACHINESCREW, MACHINE
-
321623-130 RIVETRIVET
-
332707-170 ROLL, TUNNEL - RIGHT - BLACKROLL, TUNNEL - RIGHT - BLACK
-
332707-171 ROLL, TUNNEL - LEFT - BLACKROLL, TUNNEL - LEFT - BLACK
-
340630-315 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
351707-698 GUSSET, RUNNING BOARD - RIGHT - BLACKGUSSET, RUNNING BOARD - RIGHT - BLACK
-
351707-699 GUSSET, RUNNING BOARD - LEFT - BLACKGUSSET, RUNNING BOARD - LEFT - BLACK
-
361707-700 GUSSET, TUNNEL ROLL - RIGHT - BLACKGUSSET, TUNNEL ROLL - RIGHT - BLACK
-
361707-701 GUSSET, TUNNEL ROLL - LEFT - BLACKGUSSET, TUNNEL ROLL - LEFT - BLACK
-
370621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
380730-227 BRACKET, MOUNTING - TAILLIGHT - BLACKBRACKET, MOUNTING - TAILLIGHT - BLACK
-
398470-510 SCREW, MACHINESCREW, MACHINE
-
400609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
418061-706 RIVETRIVET
-
426606-394 SNOWFLAP - BLACKSNOWFLAP - BLACK
-
435611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
445611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
452707-580 BUMPER, REAR - GREENBUMPER, REAR - GREEN
-
468476-620 SCREW, MACHINESCREW, MACHINE
-
478427-602 NUT, LOCKNUT, LOCK
-
486606-814 PAD, FUEL TANK - RIGHTPAD, FUEL TANK - RIGHT
-
486606-815 PAD, FUEL TANK - LEFTPAD, FUEL TANK - LEFT
-
496606-816 PAD, FUEL TANK - CENTERPAD, FUEL TANK - CENTER
-
501607-454 PROTECTOR, TUNNELPROTECTOR, TUNNEL
-
516606-615 BAG, BELTBAG, BELT
-
522621-324 DECAL, TUNNEL - REAR - RIGHTDECAL, TUNNEL - REAR - RIGHT
-
522621-325 DECAL, TUNNEL - REAR - LEFTDECAL, TUNNEL - REAR - LEFT
-
532621-326 DECAL, TUNNEL - FORWARD REAR - RIGHTDECAL, TUNNEL - FORWARD REAR - RIGHT
-
532621-327 DECAL, TUNNEL - FORWARD REAR - LEFTDECAL, TUNNEL - FORWARD REAR - LEFT
-
542621-328 DECAL, TUNNEL - CENTER - RIGHTDECAL, TUNNEL - CENTER - RIGHT
-
542621-329 DECAL, TUNNEL - CENTER - LEFTDECAL, TUNNEL - CENTER - LEFT
-
552621-332 DECAL, TUNNEL - CENTER FRONT - RIGHTDECAL, TUNNEL - CENTER FRONT - RIGHT
-
552621-333 DECAL, TUNNEL - CENTER FRONT - LEFTDECAL, TUNNEL - CENTER FRONT - LEFT
-
562621-334 DECAL, TUNNEL - UPPER FRONT - RIGHTDECAL, TUNNEL - UPPER FRONT - RIGHT
-
562621-335 DECAL, TUNNEL - UPPER FRONT - LEFTDECAL, TUNNEL - UPPER FRONT - LEFT
-
572621-330 DECAL, TUNNEL - LOWER FRONT - RIGHTDECAL, TUNNEL - LOWER FRONT - RIGHT
-
572621-331 DECAL, TUNNEL - LOWER FRONT - LEFTDECAL, TUNNEL - LOWER FRONT - LEFT
-
582621-346 DECAL, REAR BUMPERDECAL, REAR BUMPER
-
592707-172 SUPPORT, RUNNING BOARD - RIGHT - BLACKSUPPORT, RUNNING BOARD - RIGHT - BLACK
-
592707-173 SUPPORT, RUNNING BOARD - LEFT - BLACKSUPPORT, RUNNING BOARD - LEFT - BLACK
