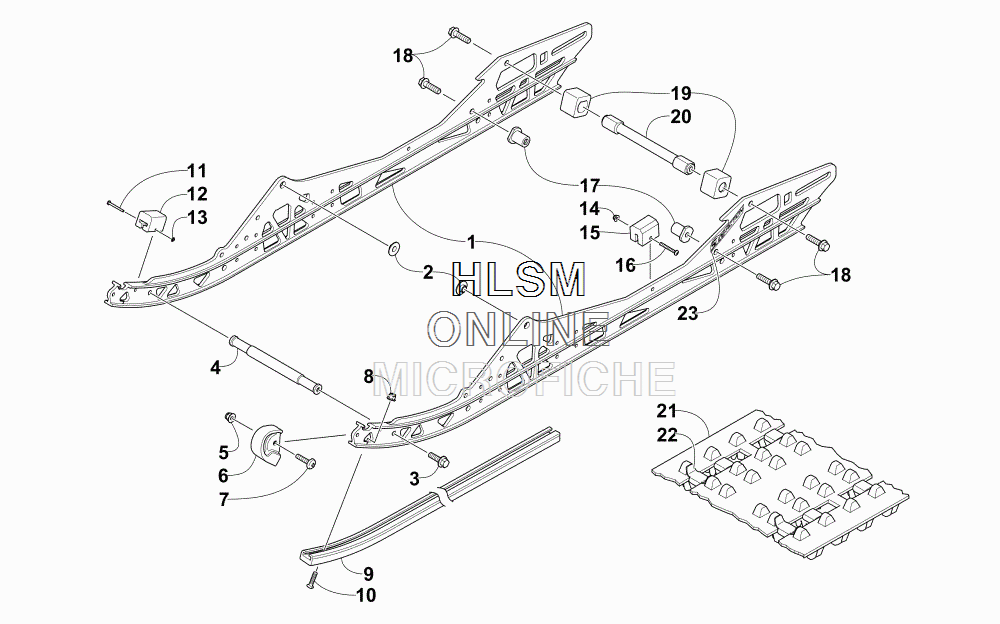

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat ZR 7000 SNO PRO 129 [S2016ZRUSPUSO] - 2016 года выпуска
-
№АртикулНазвание
-
-2704-849 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-992 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-826 SCREW, CAPSCREW, CAP
-
43604-679 AXLEAXLE
-
58427-602 NUT, LOCKNUT, LOCK
-
64604-093 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78476-630 SCREW, MACHINESCREW, MACHINE
-
88047-366 NUT, LOCKNUT, LOCK
-
93604-944 WEARSTRIP - BLACKWEARSTRIP - BLACK
-
100123-859 SCREW, MACHINESCREW, MACHINE
-
110123-767 RIVET, SOLIDRIVET, SOLID
-
120104-631 PAD, SHOCKPAD, SHOCK
-
130123-766 NUT, PUSHNUT, PUSH
-
148427-502 NUT, LOCKNUT, LOCK
-
151604-429 PAD, SHOCKPAD, SHOCK
-
168470-540 SCREW, MACHINESCREW, MACHINE
-
173604-979 AXLE, OFFSET ARMAXLE, OFFSET ARM
-
188413-031 SCREW, CAPSCREW, CAP
-
192604-545 BLOCK, REAR ARM COUPLERBLOCK, REAR ARM COUPLER
-
203604-668 AXLEAXLE
-
212602-576 TRACK ASSEMBLY (INC. 22)TRACK ASSEMBLY (INC. 22)
-
222602-383 ...CLIP, GUIDE...CLIP, GUIDE
-
230621-907 DECAL, "SLIDE ACTION"DECAL, "SLIDE ACTION"
