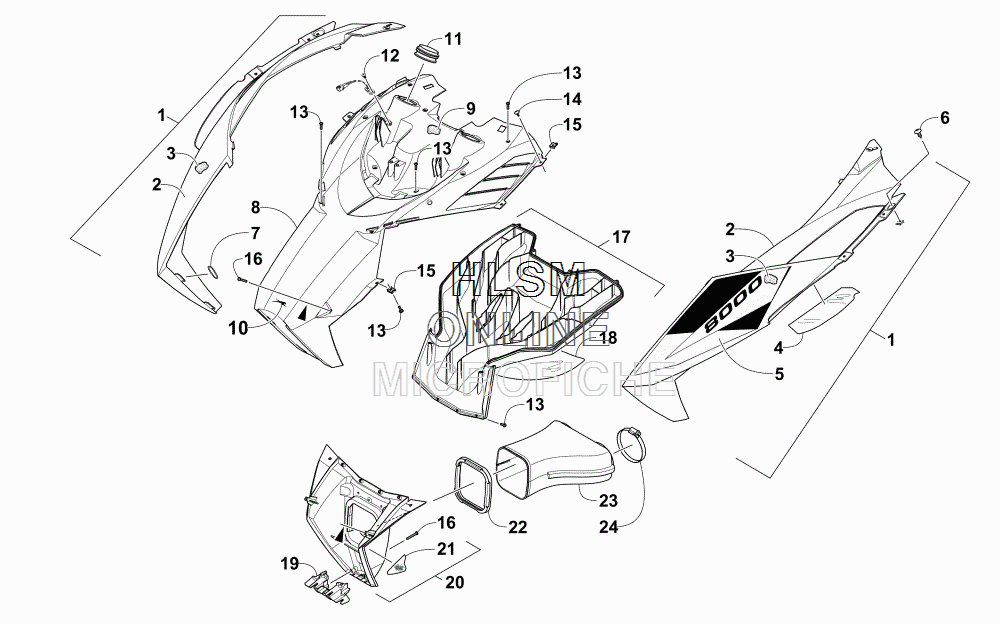

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat ZR 8000 LTD 129 ES GREEN [S2016ZRHLEUSB] - 2016 года выпуска
-
№АртикулНазвание
-
14718-662 HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)HOOD W/DECALS - RIGHT - GREEN (INC. 2-3 AND 5)
-
14718-663 HOOD W/DECALS - LEFT - GREEN (INC. 2-5)HOOD W/DECALS - LEFT - GREEN (INC. 2-5)
-
23718-656 ...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)...HOOD W/O DECALS - RIGHT - GREEN (INC. 3)
-
23718-657 ...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)...HOOD W/O DECALS - LEFT - GREEN (INC. 3-4)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
52621-386 ...DECAL, HOOD - RIGHT - GREEN...DECAL, HOOD - RIGHT - GREEN
-
52621-387 ...DECAL, HOOD - LEFT - GREEN...DECAL, HOOD - LEFT - GREEN
-
60623-784 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
71623-960 O-RINGO-RING
-
85706-356 PLENUM, INTAKE - UPPER (INC. 9)PLENUM, INTAKE - UPPER (INC. 9)
-
90617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
104411-479 DECAL, AIRCATDECAL, AIRCAT
-
116606-386 BOOT, INTAKEBOOT, INTAKE
-
120623-165 CLIP, RETAININGCLIP, RETAINING
-
131623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151623-939 CLIP, U-NUTCLIP, U-NUT
-
161623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
175706-358 PLENUM, INTAKE - LOWER REAR (INC. 18)PLENUM, INTAKE - LOWER REAR (INC. 18)
-
186606-406 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
196606-822 RETAINER, PLENUMRETAINER, PLENUM
-
205706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
220617-624 ADAPTER, BOOTADAPTER, BOOT
-
232670-328 BOOTBOOT
-
240423-018 CLAMP, HOSECLAMP, HOSE
