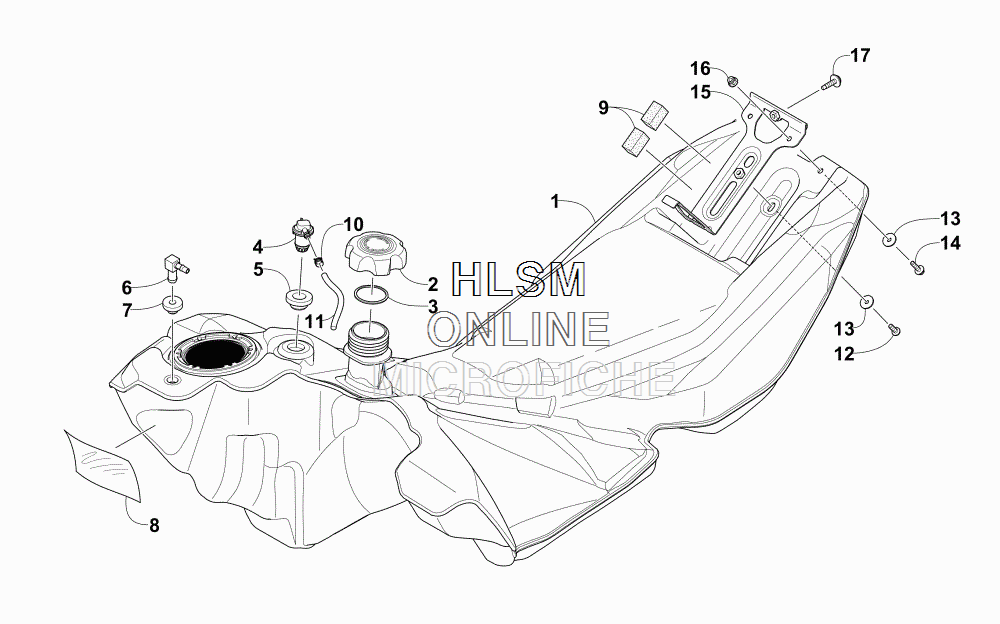

GAS TANK ASSEMBLY для Arctic Cat ZR 9000 LTD 137 GREEN [S2016ZXNLEUSG] - 2016 года выпуска
-
№АртикулНазвание
-
11770-016 TANK, GAS - ASSEMBLY (INC. 2-7)TANK, GAS - ASSEMBLY (INC. 2-7)
-
22670-048 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, GAS TANK CAP......SEAL, GAS TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
61670-494 ...FITTING, OIL TANK...FITTING, OIL TANK
-
71670-325 ...GROMMET...GROMMET
-
80619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
90617-667 PAD, FOAMPAD, FOAM
-
101623-233 CLAMP, HOSECLAMP, HOSE
-
116101-009 HOSE - 50 FTHOSE - 50 FT
-
116101-001 HOSE - 100 FTHOSE - 100 FT
-
128410-616 SCREW, CAPSCREW, CAP
-
138050-223 WASHER, FLATWASHER, FLAT
-
148410-620 SCREW, MACHINESCREW, MACHINE
-
155706-098 BRACKET, HOLD-DOWNBRACKET, HOLD-DOWN
-
168427-602 NUT, LOCKNUT, LOCK
-
170423-609 SCREW, MACHINESCREW, MACHINE
