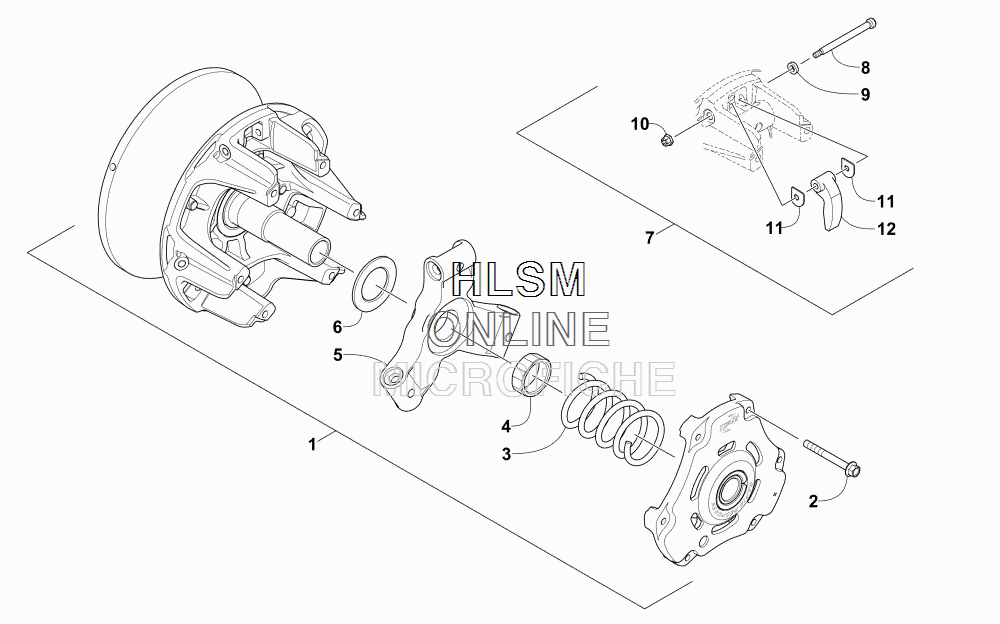

DRIVE CLUTCH для Arctic Cat ZR 9000 SNO PRO 129 ORANGE [S2016ZRNSPUSO] - 2016 года выпуска
-
№АртикулНазвание
-
10746-851 CLUTCH, DRIVE - UNCALIBRATED (INC. 2,4-6, 8-11)CLUTCH, DRIVE - UNCALIBRATED (INC. 2,4-6, 8-11)
-
20646-460 ...SCREW, SHOULDER...SCREW, SHOULDER
-
30646-473 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
40646-466 NUT, JAMNUT, JAM
-
50646-927 SPIDERSPIDER
-
60646-464 SHIMSHIM
-
77639-127 KIT, CAM ARM (INC. 8-11)KIT, CAM ARM (INC. 8-11)
-
80823-396 ...PIN, CAM ARM...PIN, CAM ARM
-
92623-091 ...WASHER...WASHER
-
100823-399 ...NUT, LOCK...NUT, LOCK
-
110646-880 ...WASHER, THRUST...WASHER, THRUST
-
120646-866 ARM, CAMARM, CAM
