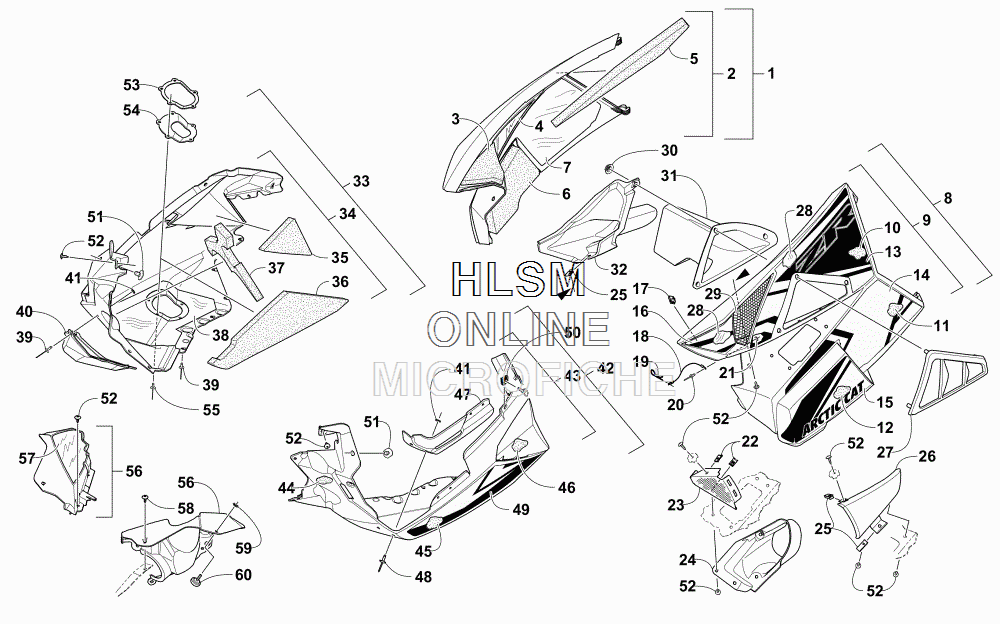

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat ZR 9000 SNO PRO 137 GREEN [S2016ZXNSPUSG] - 2016 года выпуска
-
№АртикулНазвание
-
14718-764 PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-7, 13-16 AND 18-21)PANEL, SIDE - W/DECALS - RIGHT - GREEN (INC. 2-7, 13-16 AND 18-21)
-
23718-312 ...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 18-21)...PANEL, SIDE - W/O DECALS - RIGHT - BLACK (INC. 3-7 AND 18-21)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
84718-675 PANEL, SIDE - W/DECALS - LEFT - GREEN (INC. 9-21)PANEL, SIDE - W/DECALS - LEFT - GREEN (INC. 9-21)
-
94718-557 ...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-12 AND 17-21)...PANEL, SIDE - W/O DECALS - LEFT - BLACK (INC. 10-12 AND 17-21)
-
100617-669 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
132621-574 ...DECAL, SIDE PANEL - UPPER - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER - RIGHT - GREEN
-
132621-577 ...DECAL, SIDE PANEL - UPPER - LEFT - GREEN...DECAL, SIDE PANEL - UPPER - LEFT - GREEN
-
142621-572 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER REAR - RIGHT - GREEN
-
142621-573 ...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN...DECAL, SIDE PANEL - LOWER REAR - LEFT - GREEN
-
152621-580 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - GREEN...DECAL, SIDE PANEL - LOWER FRONT - RIGHT - GREEN
-
152621-581 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN...DECAL, SIDE PANEL - LOWER FRONT - LEFT - GREEN
-
162621-578 ...DECAL, SIDE PANEL - UPPER - FRONT - RIGHT - GREEN...DECAL, SIDE PANEL - UPPER - FRONT - RIGHT - GREEN
-
162621-579 ...DECAL, SIDE PANEL - UPPER - FRONT - LEFT - GREEN...DECAL, SIDE PANEL - UPPER - FRONT - LEFT - GREEN
-
171623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
180607-447 ...CABLE...CABLE
-
190605-283 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
208060-486 ...RIVET...RIVET
-
218050-127 ...WASHER...WASHER
-
221623-052 CLIP, U-NUTCLIP, U-NUT
-
236606-925 SCREEN, INTAKESCREEN, INTAKE
-
242602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
251623-030 CLIP, U-NUTCLIP, U-NUT
-
262602-793 DUCT, INTAKE - OUTER - BLACKDUCT, INTAKE - OUTER - BLACK
-
270608-648 VENT, HEAT DUCTVENT, HEAT DUCT
-
280619-206 FOIL, PROTECTIVE (OPTIONAL)FOIL, PROTECTIVE (OPTIONAL)
-
295706-531 SCREEN, INTAKE (OPTIONAL)SCREEN, INTAKE (OPTIONAL)
-
301623-469 NUT, STAMPEDNUT, STAMPED
-
310708-596 DUCT, HEATDUCT, HEAT
-
321702-367 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
334718-824 PLATE, SKID - W/DECALS - RIGHT - GREEN (INC. 34-41 AND 49)PLATE, SKID - W/DECALS - RIGHT - GREEN (INC. 34-41 AND 49)
-
343718-422 ...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 35-41)...PLATE, SKID - W/O DECALS - RIGHT - BLACK (INC. 35-41)
-
350617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
360617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
370617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
382612-850 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
398061-708 ......RIVET......RIVET
-
402612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
410123-802 ......WASHER......WASHER
-
424718-803 PLATE, SKID - W/DECALS - LEFT - GREEN (INC. 41, 43-49)PLATE, SKID - W/DECALS - LEFT - GREEN (INC. 41, 43-49)
-
433718-789 ...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 44-48)...PLATE, SKID - W/O DECALS - LEFT - BLACK (INC. 44-48)
-
440617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
450617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
460617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
476606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
488061-708 ......RIVET......RIVET
-
492621-582 ...DECAL, SKID PLATE - LOWER FRONT - RIGHT - GREEN...DECAL, SKID PLATE - LOWER FRONT - RIGHT - GREEN
-
492621-583 ...DECAL, SKID PLATE - LOWER FRONT - LEFT - GREEN...DECAL, SKID PLATE - LOWER FRONT - LEFT - GREEN
-
502623-005 CLIP, RETAININGCLIP, RETAINING
-
516606-592 PIN, RETAININGPIN, RETAINING
-
521623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
532612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
542612-799 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
558061-710 RIVET, BLIND - LARGE FLANGE - SS68 - BLACKRIVET, BLIND - LARGE FLANGE - SS68 - BLACK
-
563718-302 FASCIA, FRONT - RIGHT - BLACK (INC. 57)FASCIA, FRONT - RIGHT - BLACK (INC. 57)
-
566606-351 FASCIA, FRONT - LEFT - BLACKFASCIA, FRONT - LEFT - BLACK
-
576606-404 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
580623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
592623-001 NUT, PUSHNUT, PUSH
-
601623-999 SCREW, THUMBSCREW, THUMB
