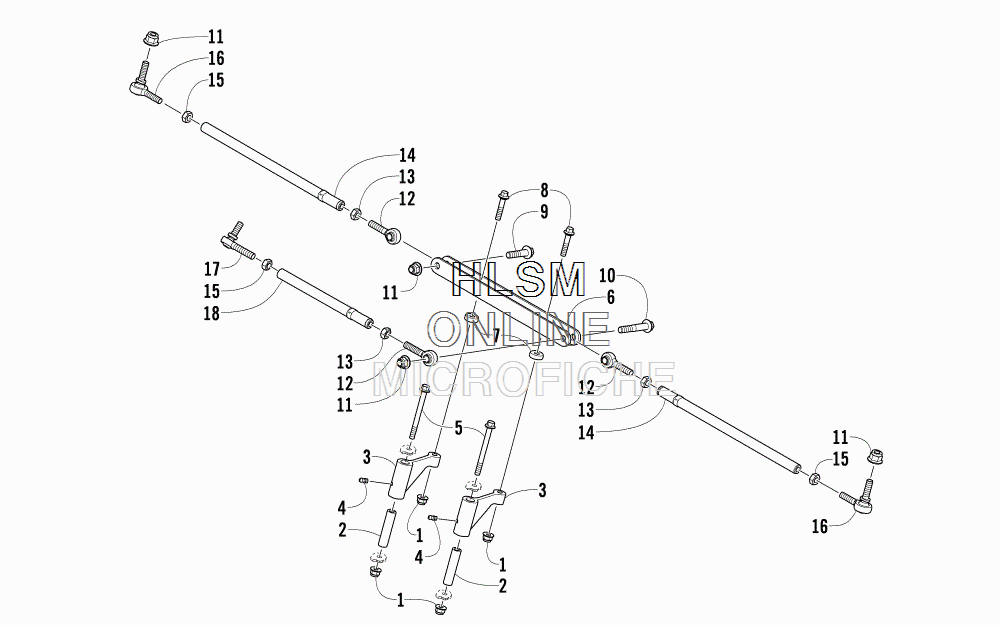

TIE ROD ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
18427-802 NUTNUT
-
22603-436 AXLE, STEERING ARMAXLE, STEERING ARM
-
31707-115 ARM, STEERING - ASSEMBLY (INC. 4)ARM, STEERING - ASSEMBLY (INC. 4)
-
41623-010 ...FITTING, GREASE...FITTING, GREASE
-
58408-885 SCREW, CAPSCREW, CAP
-
61705-245 DRAG LINK (INC. 7)DRAG LINK (INC. 7)
-
70605-760 ...BEARING...BEARING
-
81623-662 SCREW, SHOULDERSCREW, SHOULDER
-
98408-045 SCREW, CAPSCREW, CAP
-
108408-065 SCREW, CAPSCREW, CAP
-
118427-002 NUT, LOCKNUT, LOCK
-
121605-018 ROD END, RIGHT HAND - M10 X 1.25 (10 MM BORE)ROD END, RIGHT HAND - M10 X 1.25 (10 MM BORE)
-
138420-002 NUT - RIGHT-HAND THREADNUT - RIGHT-HAND THREAD
-
140605-960 TUBE, TIE ROD - SPINDLETUBE, TIE ROD - SPINDLE
-
150423-013 NUT - LEFT-HAND THREADNUT - LEFT-HAND THREAD
-
161605-019 BALL JOINT, STEERING - LEFT-HAND THREADBALL JOINT, STEERING - LEFT-HAND THREAD
-
171605-021 ROD END, LEFT HAND - W/STUDROD END, LEFT HAND - W/STUD
-
180605-959 TUBE, TIE RODTUBE, TIE ROD
