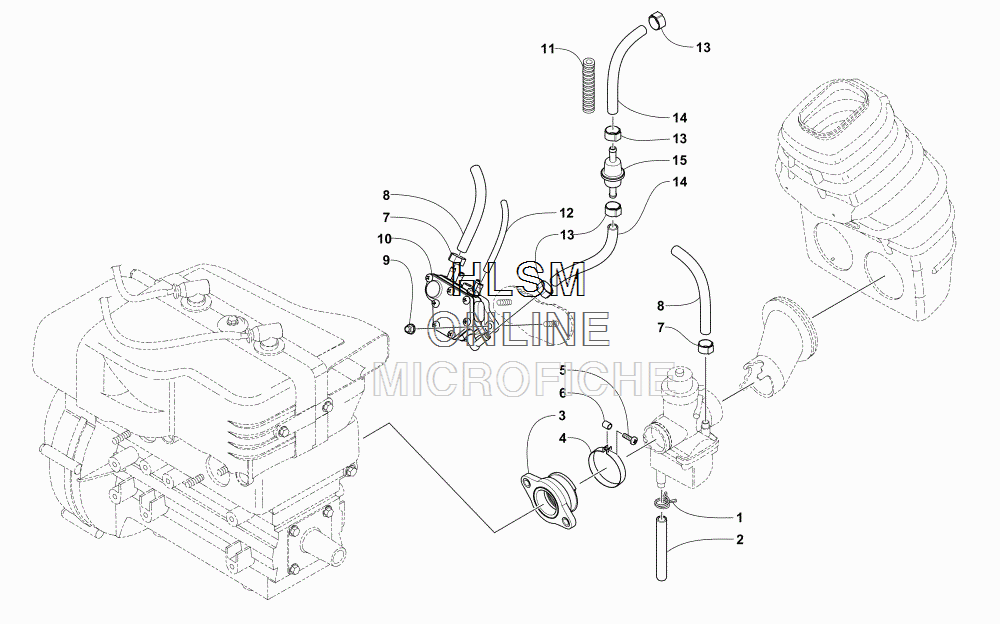

CARBURETOR AND FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
10623-652 CLAMP, HOSECLAMP, HOSE
-
20610-442 HOSE, DRAIN - 1.5 IN.HOSE, DRAIN - 1.5 IN.
-
30115-544 FLANGE, CARBURETOR (INC. 4-5)FLANGE, CARBURETOR (INC. 4-5)
-
40109-709 ...CLAMP...CLAMP
-
56505-819 ...SCREW...SCREW
-
60670-210 SPACERSPACER
-
70610-415 CLAMP, HOSECLAMP, HOSE
-
80610-772 HOSE, GASLINE - 25 FTHOSE, GASLINE - 25 FT
-
98427-602 NUT, LOCKNUT, LOCK
-
101670-262 PUMP, FUELPUMP, FUEL
-
110619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
120610-007 HOSE, IMPULSE - 25 FTHOSE, IMPULSE - 25 FT
-
130610-563 CLAMP, HOSECLAMP, HOSE
-
140610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
152670-346 FILTER, FUEL - INLINEFILTER, FUEL - INLINE
