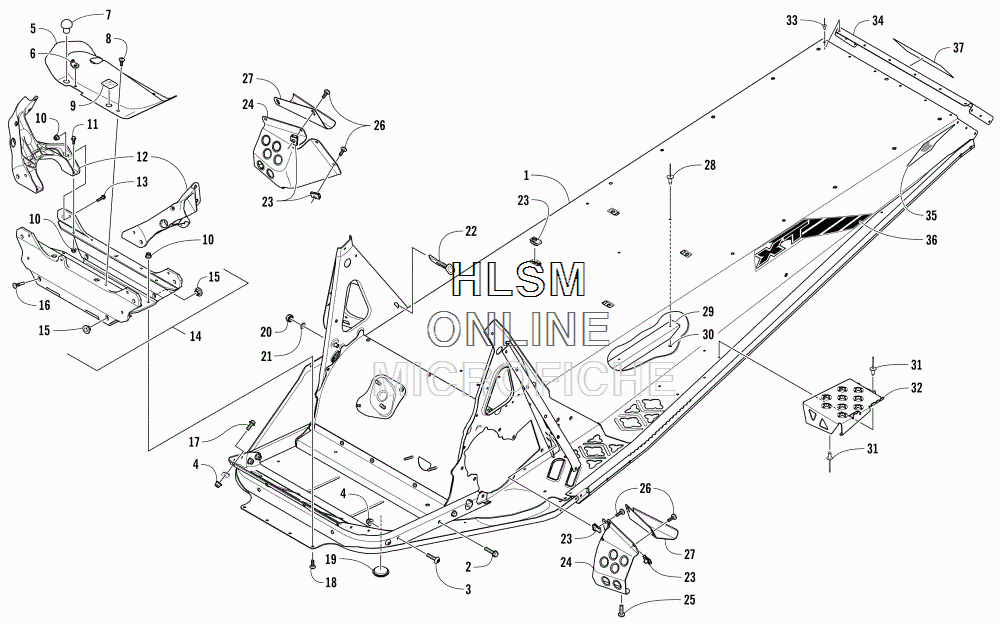

CHASSIS ASSEMBLY для Arctic Cat BEARCAT 2000 XT BLUE - 2017 года выпуска
-
№АртикулНазвание
-
11707-332 CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)CHASSIS - ASSEMBLY (INC. 2-3 AND FOUR NO. 4)
-
21623-428 ...SCREW, CAP...SCREW, CAP
-
38476-835 ...SCREW, CAP...SCREW, CAP
-
48427-802 ...NUT...NUT
-
54706-300 CLOSE-OFF, FRONT ENDCLOSE-OFF, FRONT END
-
64606-770 BRACKET, RETAININGBRACKET, RETAINING
-
70612-111 BUMPER, MOLDED - RUBBERBUMPER, MOLDED - RUBBER
-
88476-616 SCREW, MACHINESCREW, MACHINE
-
92606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
108427-602 NUT, LOCKNUT, LOCK
-
118408-620 SCREW, CAPSCREW, CAP
-
120607-806 FRAME, MOUNTING - SHOCK - RIGHTFRAME, MOUNTING - SHOCK - RIGHT
-
120607-807 FRAME, MOUNTING - SHOCK - LEFTFRAME, MOUNTING - SHOCK - LEFT
-
138408-625 SCREW, CAPSCREW, CAP
-
141707-170 BRACKET, MOUNTING - FRONT SUSPENSION (INC. 15-16)BRACKET, MOUNTING - FRONT SUSPENSION (INC. 15-16)
-
150605-763 ...BUSHING...BUSHING
-
161623-443 ...BOLT, RIBBED...BOLT, RIBBED
-
178408-820 SCREW, CAPSCREW, CAP
-
188476-620 SCREW, MACHINESCREW, MACHINE
-
191623-625 PLUGPLUG
-
200623-038 NUT W/WASHERNUT W/WASHER
-
218053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
224606-454 STRAP, HOLD-DOWN - UPPER - RIGHTSTRAP, HOLD-DOWN - UPPER - RIGHT
-
224606-455 STRAP, HOLD-DOWN - UPPER - LEFTSTRAP, HOLD-DOWN - UPPER - LEFT
-
230423-577 CLIP, U-NUTCLIP, U-NUT
-
243606-710 SHIELD, TOE - RIGHTSHIELD, TOE - RIGHT
-
243606-711 SHIELD, TOE - LEFTSHIELD, TOE - LEFT
-
258471-620 SCREW, MACHINESCREW, MACHINE
-
268471-616 SCREW, MACHINESCREW, MACHINE
-
273606-920 BRACKET, TOE HOOK - RIGHTBRACKET, TOE HOOK - RIGHT
-
273606-921 BRACKET, TOE HOOK - LEFTBRACKET, TOE HOOK - LEFT
-
288060-510 RIVETRIVET
-
294706-508 WEARSTRIP, TUNNELWEARSTRIP, TUNNEL
-
300123-149 WASHER, FLATWASHER, FLAT
-
318060-686 RIVETRIVET
-
325606-580 FOOTREST, PASSENGER - RIGHTFOOTREST, PASSENGER - RIGHT
-
325606-581 FOOTREST, PASSENGER - LEFTFOOTREST, PASSENGER - LEFT
-
338060-682 RIVETRIVET
-
345606-515 END CAP, TUNNELEND CAP, TUNNEL
-
356611-688 DECAL, REFLECTOR - RIGHT - REDDECAL, REFLECTOR - RIGHT - RED
-
356611-689 DECAL, REFLECTOR - LEFT - REDDECAL, REFLECTOR - LEFT - RED
-
363621-184 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
363621-185 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
372621-926 DECAL, CAPACITYDECAL, CAPACITY
