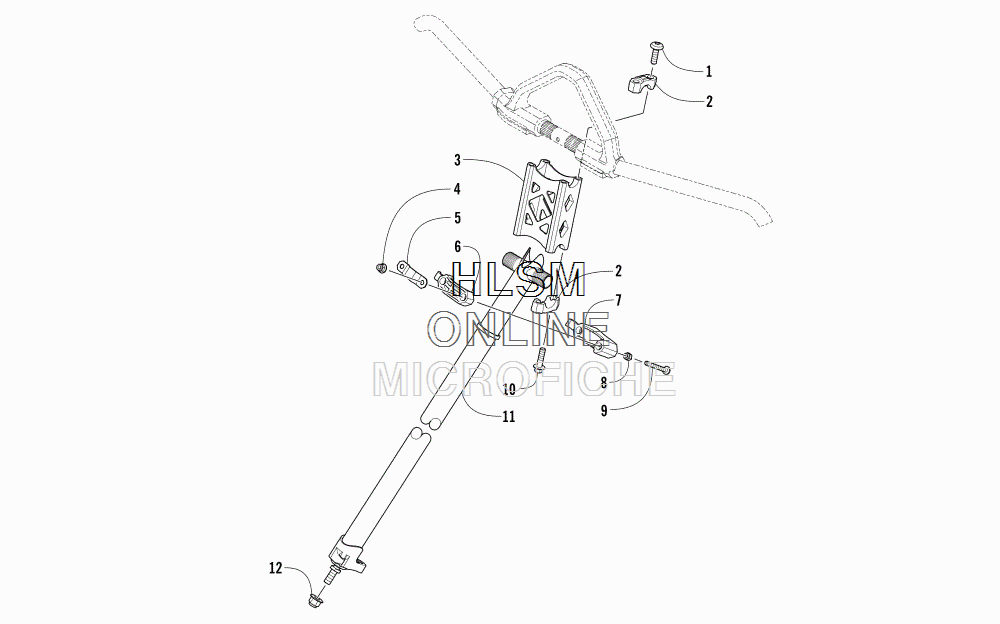

STEERING POST ASSEMBLY для Arctic Cat BEARCAT 3000 LT BLUE EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
18477-830 SCREW, MACHINESCREW, MACHINE
-
21605-118 CAP, RISER BLOCKCAP, RISER BLOCK
-
31605-034 BLOCK, RISERBLOCK, RISER
-
48427-602 NUT, LOCKNUT, LOCK
-
50605-998 PLATE, RETAININGPLATE, RETAINING
-
61605-127 BLOCK, MOUNTING - STEERING POST - UPPERBLOCK, MOUNTING - STEERING POST - UPPER
-
71605-128 BLOCK, MOUNTING - STEERING POST - LOWERBLOCK, MOUNTING - STEERING POST - LOWER
-
88422-602 NUTNUT
-
92623-079 SCREW, MACHINESCREW, MACHINE
-
108408-830 SCREW, CAPSCREW, CAP
-
111705-522 POST, STEERINGPOST, STEERING
-
122623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
