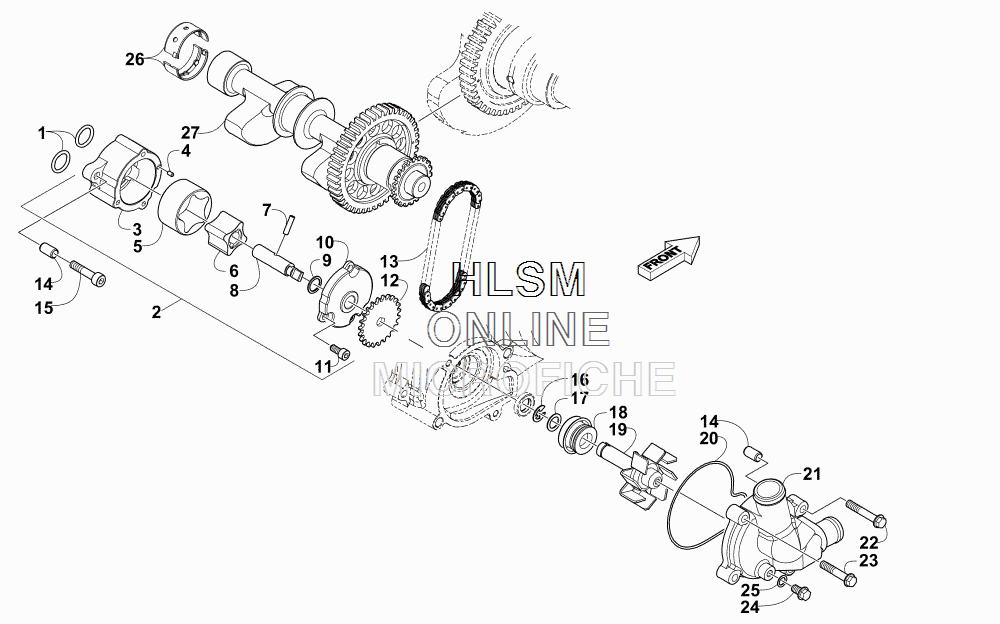

OIL PUMP AND WATER PUMP ASSEMBLIES для Arctic Cat BEARCAT 3000 LT INTERNATIONAL BLUE - 2017 года выпуска
-
№АртикулНазвание
-
13307-035 O-RINGO-RING
-
23307-013 OIL PUMP ASSEMBLY (INC. 3-11)OIL PUMP ASSEMBLY (INC. 3-11)
-
33307-019 ...BODY, OIL PUMP...BODY, OIL PUMP
-
43307-036 ...PIN, DOWEL...PIN, DOWEL
-
53307-020 ...ROTOR, OIL PUMP - OUTER...ROTOR, OIL PUMP - OUTER
-
63307-021 ...ROTOR, OIL PUMP - INNER...ROTOR, OIL PUMP - INNER
-
70812-036 ...PIN, DRIVEN GEAR...PIN, DRIVEN GEAR
-
83306-797 ...SHAFT, OIL PUMP...SHAFT, OIL PUMP
-
93307-017 ...WASHER...WASHER
-
103307-014 ...COVER, OIL PUMP...COVER, OIL PUMP
-
113307-015 ...BOLT...BOLT
-
123307-016 SPROCKET, OIL PUMP DRIVESPROCKET, OIL PUMP DRIVE
-
133307-018 CHAIN, OIL PUMPCHAIN, OIL PUMP
-
143303-341 PIN, DOWELPIN, DOWEL
-
153303-398 SCREW, CAPSCREW, CAP
-
163307-038 E-RINGE-RING
-
173307-033 WASHER, THRUSTWASHER, THRUST
-
183307-083 SEAL, MECHANICALSEAL, MECHANICAL
-
193307-024 SHAFT, IMPELLERSHAFT, IMPELLER
-
203307-023 O-RINGO-RING
-
213306-798 COVER, WATER PUMPCOVER, WATER PUMP
-
223303-385 SCREW, CAPSCREW, CAP
-
233303-386 BOLT, FLANGEBOLT, FLANGE
-
243304-186 SCREW, CAPSCREW, CAP
-
253304-049 WASHERWASHER
-
263307-010 BEARING, BALANCER SHAFT- BROWNBEARING, BALANCER SHAFT- BROWN
-
263307-121 BEARING, BALANCER SHAFT - GREENBEARING, BALANCER SHAFT - GREEN
-
263307-122 BEARING, BALANCER SHAFT - YELLOWBEARING, BALANCER SHAFT - YELLOW
-
273307-012 SHAFT, BALANCERSHAFT, BALANCER
