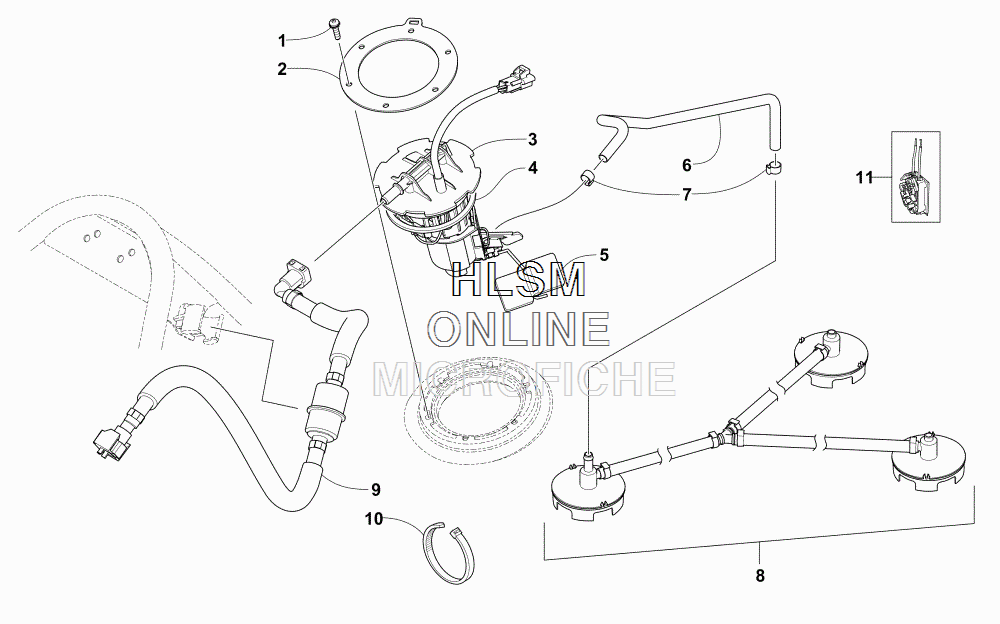

FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT 7000 XT BLUE EARLY BUILD - 2017 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-450 FUEL PUMP (INC. 4-5)FUEL PUMP (INC. 4-5)
-
40470-838 ...SEAL...SEAL
-
52670-235 ...FLOAT...FLOAT
-
60610-995 HOSE, FUEL PUMPHOSE, FUEL PUMP
-
70610-704 CLAMP, HOSECLAMP, HOSE
-
82670-422 FUEL PICKUPFUEL PICKUP
-
91770-116 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
100123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
100623-751 TIE, CABLE - REUSABLETIE, CABLE - REUSABLE
-
111770-170 FUEL LEVEL SENSOR KITFUEL LEVEL SENSOR KIT
