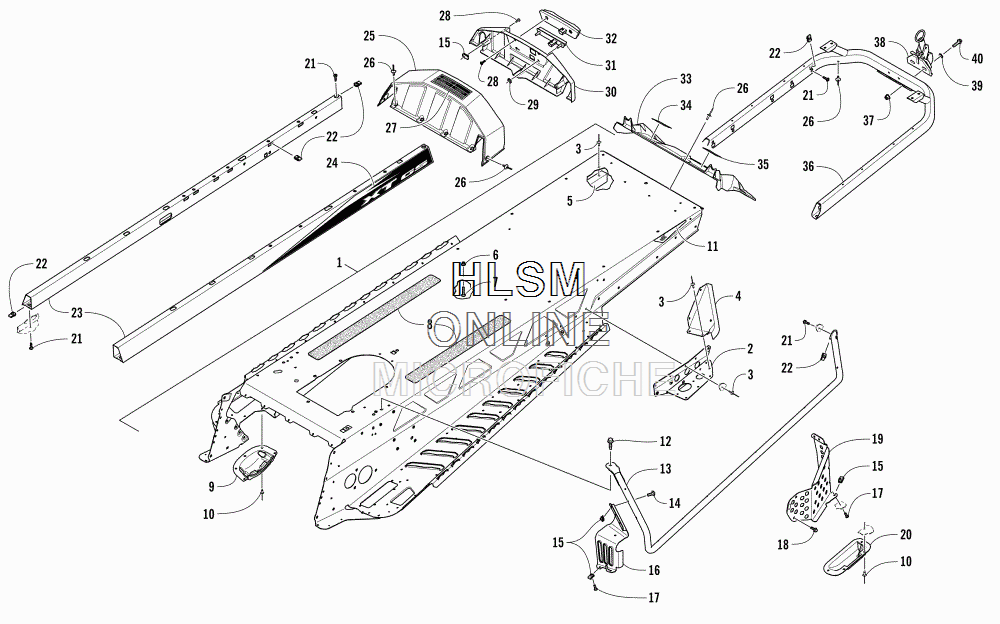

TUNNEL AND REAR RACK ASSEMBLY для Arctic Cat BEARCAT 7000 XT GROOMER SPECIAL ORANGE INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
-2707-757 CHASSIS ASSEMBLYCHASSIS ASSEMBLY
-
12707-072 TUNNEL ASSEMBLY (INC. 2-4)TUNNEL ASSEMBLY (INC. 2-4)
-
22707-066 ...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK...BRACKET, MOUNTING - SUSPENSION - RIGHT - BLACK
-
22707-067 ...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK...BRACKET, MOUNTING - SUSPENSION - LEFT - BLACK
-
38060-686 ...RIVET...RIVET
-
41607-386 ...CLOSE-OFF, RUNNING BOARD - RIGHT...CLOSE-OFF, RUNNING BOARD - RIGHT
-
41607-387 ...CLOSE-OFF, RUNNING BOARD - LEFT...CLOSE-OFF, RUNNING BOARD - LEFT
-
51607-690 ...PROTECTOR, TUNNEL...PROTECTOR, TUNNEL
-
68427-602 ...NUT, LOCK...NUT, LOCK
-
78477-635 ...SCREW, MACHINE...SCREW, MACHINE
-
86606-982 ...PAD, FUEL TANK - RIGHT...PAD, FUEL TANK - RIGHT
-
86606-983 ...PAD, FUEL TANK - LEFT...PAD, FUEL TANK - LEFT
-
91607-109 ...PROTECTOR, CHAIN CASE...PROTECTOR, CHAIN CASE
-
108061-708 ...RIVET...RIVET
-
112621-932 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
112621-933 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
122623-060 SCREW, CAPSCREW, CAP
-
132707-070 ROLL, TUNNEL - RIGHTROLL, TUNNEL - RIGHT
-
132707-071 ROLL, TUNNEL - LEFTROLL, TUNNEL - LEFT
-
148468-535 SCREW, MACHINESCREW, MACHINE
-
151623-637 CLIP, U-NUTCLIP, U-NUT
-
160607-996 FOOTREST - RIGHTFOOTREST - RIGHT
-
160607-997 FOOTREST - LEFTFOOTREST - LEFT
-
178470-516 SCREW, MACHINESCREW, MACHINE
-
188408-613 SCREW, CAPSCREW, CAP
-
191607-346 SHIELD, BRAKE DISCSHIELD, BRAKE DISC
-
200607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
212623-059 SCREW, MACHINESCREW, MACHINE
-
220423-577 CLIP, U-NUTCLIP, U-NUT
-
231607-410 RISER, TUNNEL - RIGHTRISER, TUNNEL - RIGHT
-
231607-411 RISER, TUNNEL - LEFTRISER, TUNNEL - LEFT
-
243621-204 DECAL, RISER - "XT GS" - RIGHT - ORANGEDECAL, RISER - "XT GS" - RIGHT - ORANGE
-
243621-205 DECAL, RISER - "XT GS" - LEFT - ORANGEDECAL, RISER - "XT GS" - LEFT - ORANGE
-
256606-792 CLOSE-OFF, TUNNELCLOSE-OFF, TUNNEL
-
268061-706 RIVETRIVET
-
272621-926 DECAL, CAPACITYDECAL, CAPACITY
-
288477-516 SCREW, MACHINESCREW, MACHINE
-
290423-357 NUT, STAMPEDNUT, STAMPED
-
306606-889 CLOSE-OFF, TUNNEL - INNERCLOSE-OFF, TUNNEL - INNER
-
310609-941 LIGHT, REVERSELIGHT, REVERSE
-
320609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
336706-111 SNOWFLAP W/DECALS (INC. 34-35)SNOWFLAP W/DECALS (INC. 34-35)
-
345611-853 ...DECAL, WARNING - TOWING (ENGLISH)...DECAL, WARNING - TOWING (ENGLISH)
-
355611-852 ...DECAL, WARNING - TOWING (FRENCH)...DECAL, WARNING - TOWING (FRENCH)
-
362707-143 REAR BUMPER - ASSEMBLYREAR BUMPER - ASSEMBLY
-
378427-802 NUTNUT
-
384606-156 HITCH, PINTLEHITCH, PINTLE
-
398050-242 WASHERWASHER
-
408408-830 SCREW, CAPSCREW, CAP
