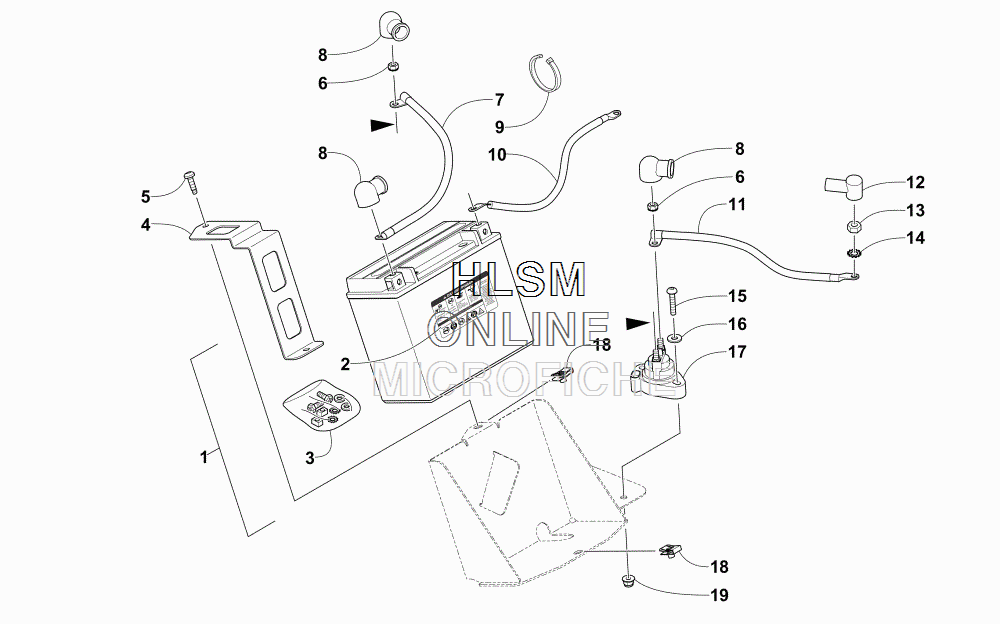

BATTERY AND TRAY ASSEMBLY для Arctic Cat BEARCAT 7000 XT GROOMER SPECIAL ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
10745-406 BATTERY - W/ACID (INC. 2-3)BATTERY - W/ACID (INC. 2-3)
-
20645-430 DECAL, WARNINGDECAL, WARNING
-
30445-082 KIT, HARDWAREKIT, HARDWARE
-
40645-783 BRACKET, HOLD-DOWN - BATTERYBRACKET, HOLD-DOWN - BATTERY
-
52623-059 SCREW, MACHINESCREW, MACHINE
-
60623-038 NUT W/WASHERNUT W/WASHER
-
70645-786 CABLE, BATTERY/SOLENOID (INC. 8)CABLE, BATTERY/SOLENOID (INC. 8)
-
80645-697 ...BOOT, TERMINAL - BATTERY...BOOT, TERMINAL - BATTERY
-
90123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
100645-785 CABLE, GROUND - BATTERY/STARTERCABLE, GROUND - BATTERY/STARTER
-
110645-784 CABLE, SOLENOID/STARTER (INC. 9-10)CABLE, SOLENOID/STARTER (INC. 9-10)
-
120645-662 BOOT, TERMINAL - BATTERYBOOT, TERMINAL - BATTERY
-
133020-373 NUTNUT
-
148053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
158468-630 SCREW, MACHINESCREW, MACHINE
-
168050-217 WASHERWASHER
-
170445-058 SOLENOIDSOLENOID
-
180423-577 CLIP, U-NUTCLIP, U-NUT
-
198427-602 NUT, LOCKNUT, LOCK
