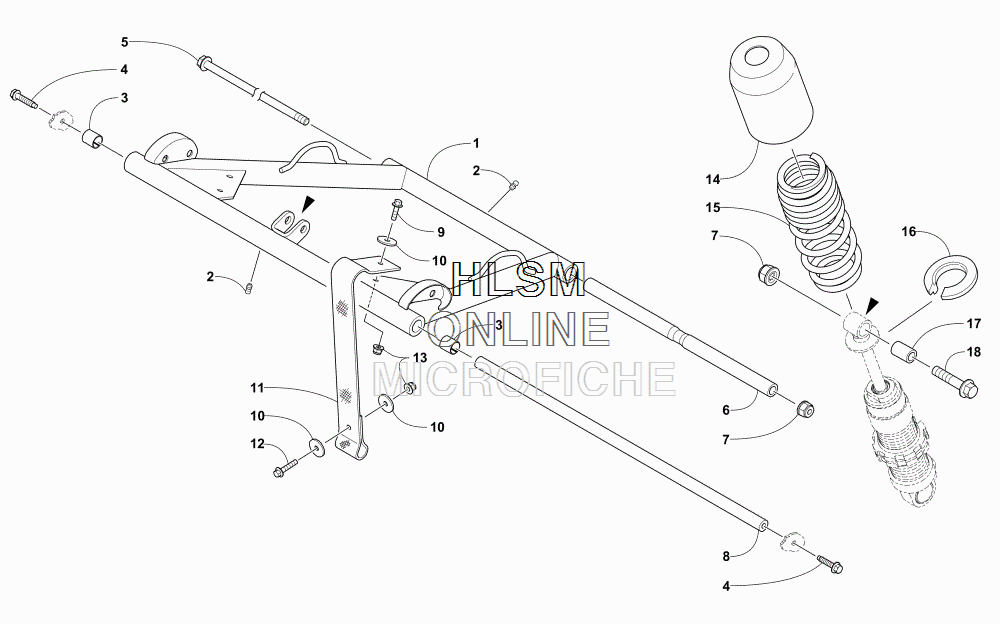

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat BEARCAT 7000 XT INTERNATIONAL BLUE - 2017 года выпуска
-
№АртикулНазвание
-
12704-866 ARM, FRONT SUSPENSION - BLACK (INC. 2-3)ARM, FRONT SUSPENSION - BLACK (INC. 2-3)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
30603-083 ...BEARING...BEARING
-
42623-002 SCREW, CAPSCREW, CAP
-
52623-078 SCREW, CAPSCREW, CAP
-
64604-141 AXLE, INNERAXLE, INNER
-
72623-202 NUT, LOCK W/WASHERNUT, LOCK W/WASHER
-
83604-604 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
98408-620 SCREW, CAPSCREW, CAP
-
108450-109 WASHERWASHER
-
113604-911 STRAP, LIMITERSTRAP, LIMITER
-
128408-630 SCREW, CAPSCREW, CAP
-
138427-602 NUT, LOCKNUT, LOCK
-
140604-790 COVER, SHOCKCOVER, SHOCK
-
151704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
163604-200 RETAINER, SPRINGRETAINER, SPRING
-
173604-273 AXLEAXLE
-
188408-050 SCREW, CAPSCREW, CAP
