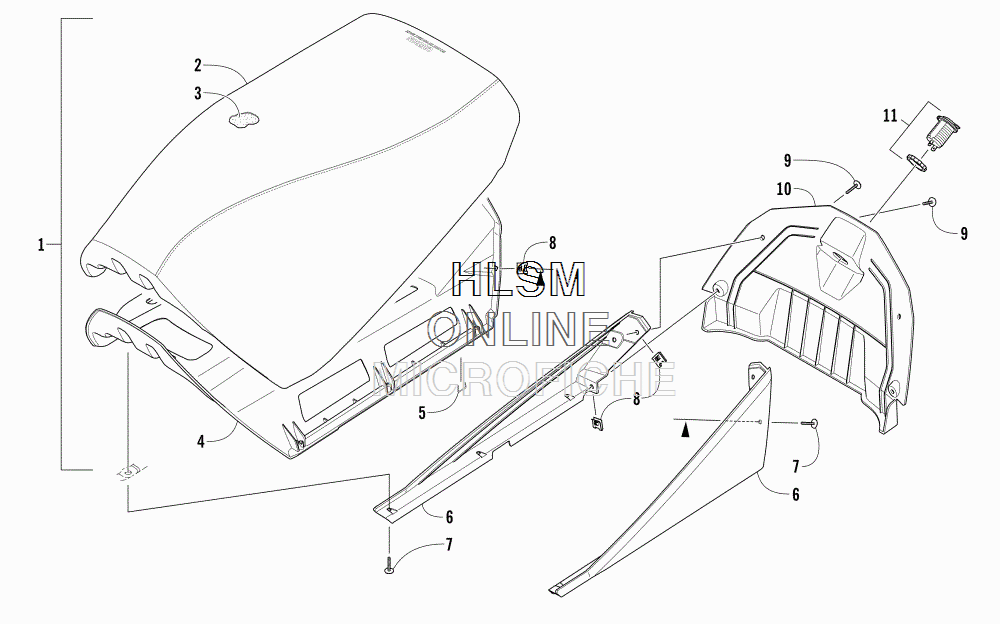

SEAT ASSEMBLY для Arctic Cat BEARCAT 7000 XT INTERNATIONAL ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
16706-183 COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-5)COMPLETE SEAT ASSEMBLY - BLACK (INC. 2-5)
-
26706-181 ...COVER, SEAT - BLACK...COVER, SEAT - BLACK
-
30717-226 ...FOAM, SEAT...FOAM, SEAT
-
46606-794 ...SEAT-BASE...SEAT-BASE
-
50624-528 ...STAPLE...STAPLE
-
66606-894 FASCIA, FRONT SEAT - RIGHTFASCIA, FRONT SEAT - RIGHT
-
66606-895 FASCIA, FRONT SEAT - LEFTFASCIA, FRONT SEAT - LEFT
-
72623-165 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81623-939 NUT, UNUT, U
-
92623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
106606-897 FASCIA, FRONT SEAT - REARFASCIA, FRONT SEAT - REAR
-
110641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
