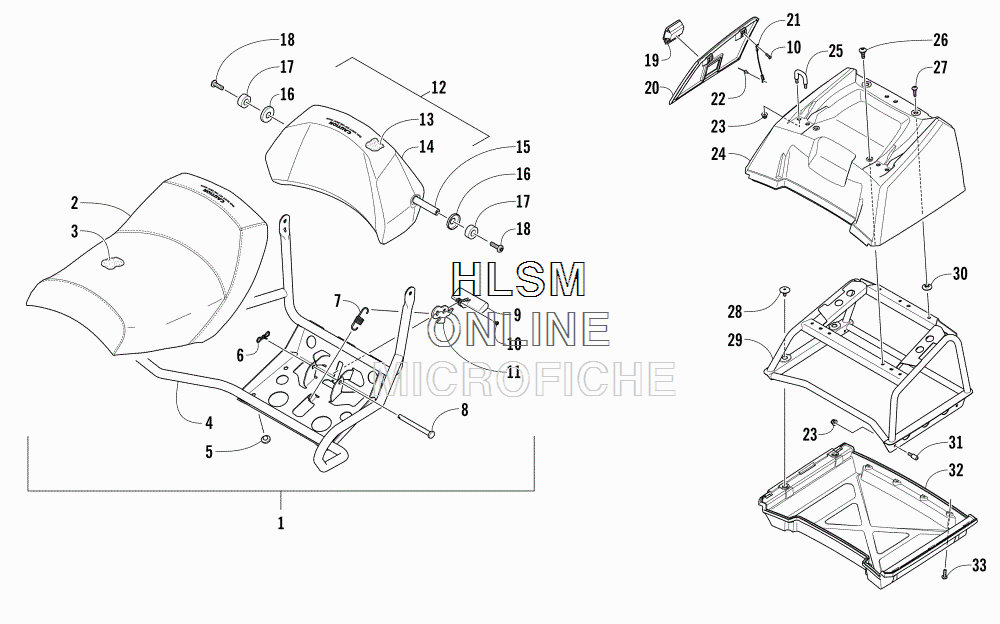

PASSENGER SEAT AND BACKREST ASSEMBLY для Arctic Cat BEARCAT 7000 XT ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
15706-965 PASSENGER SEAT - ASSEMBLY (INC. 2-18)PASSENGER SEAT - ASSEMBLY (INC. 2-18)
-
25706-877 ...COVER, PASSENGER SEAT...COVER, PASSENGER SEAT
-
30717-219 ...FOAM, PASSENGER SEAT...FOAM, PASSENGER SEAT
-
45706-876 ...BASE, PASSENGER SEAT...BASE, PASSENGER SEAT
-
50406-877 ...BUMPER...BUMPER
-
61623-546 ...CLIP, RETAINING...CLIP, RETAINING
-
70612-668 ...SPRING...SPRING
-
82623-097 ...PIN, CLEVIS...PIN, CLEVIS
-
96606-945 ...HANDLE, LATCH...HANDLE, LATCH
-
101623-978 ...SCREW, MACHINE...SCREW, MACHINE
-
116606-928 ...HOOK, LATCH...HOOK, LATCH
-
125706-763 ...BACKREST - ASSEMBLY (INC. 13-14)...BACKREST - ASSEMBLY (INC. 13-14)
-
130717-210 ......FOAM, BACKREST......FOAM, BACKREST
-
145706-363 ......COVER, BACKREST......COVER, BACKREST
-
156606-593 ...AXLE, BACKREST...AXLE, BACKREST
-
160723-003 ...WASHER, CUP...WASHER, CUP
-
170616-547 ...BLOCK, TENSION - BACKREST...BLOCK, TENSION - BACKREST
-
188477-831 ...SCREW, MACHINE...SCREW, MACHINE
-
191423-035 LATCH, ACCESS DOORLATCH, ACCESS DOOR
-
206606-918 DOOR, STORAGE BOXDOOR, STORAGE BOX
-
216606-616 CABLE, DOORCABLE, DOOR
-
228060-484 RIVETRIVET
-
238427-602 NUT, LOCKNUT, LOCK
-
246606-916 STORAGE BOX - UPPERSTORAGE BOX - UPPER
-
252623-081 U-BOLTU-BOLT
-
260423-355 SCREW, SHOULDERSCREW, SHOULDER
-
272623-063 SCREW, MACHINESCREW, MACHINE
-
281623-775 SCREW, SHOULDERSCREW, SHOULDER
-
295706-889 SEAT SUPPORTSEAT SUPPORT
-
302623-099 SPACERSPACER
-
316606-946 PIN, MOUNTINGPIN, MOUNTING
-
326606-917 STORAGE BOX - LOWERSTORAGE BOX - LOWER
-
331623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
