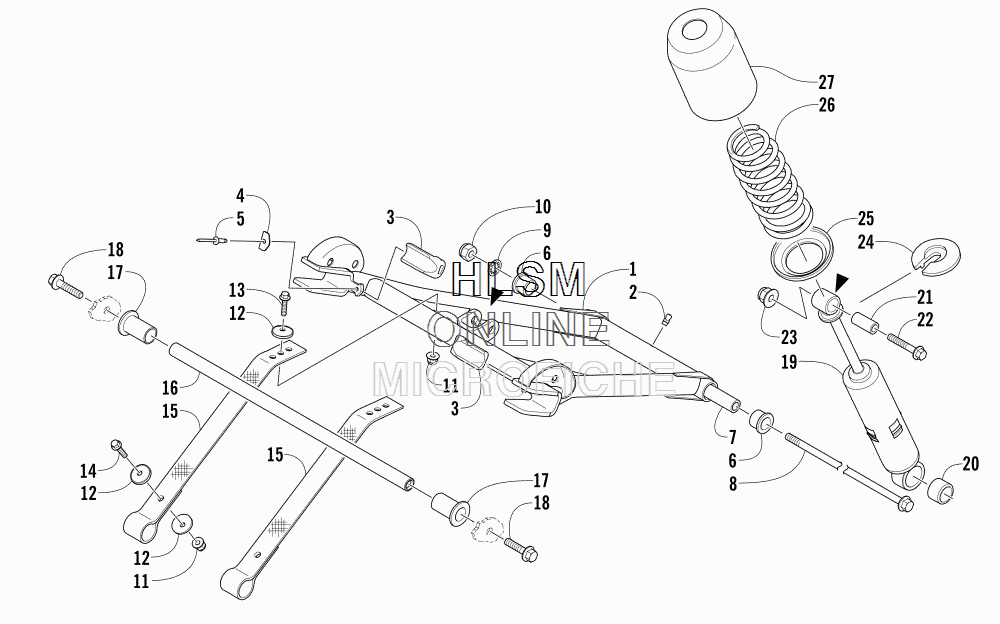

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat LYNX 2000 LT BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11704-671 ARM, FRONT SUSPENSION - BLACK (INC. 2-6)ARM, FRONT SUSPENSION - BLACK (INC. 2-6)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
33604-141 ...BUMPER, FRONT SLIDER...BUMPER, FRONT SLIDER
-
43604-968 ...PLATE, RETAINING...PLATE, RETAINING
-
58060-708 ...RIVET...RIVET
-
60104-386 ...BUSHING...BUSHING
-
73604-272 AXLE, INNERAXLE, INNER
-
81423-064 SCREW, CAPSCREW, CAP
-
91623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
108422-002 NUT, LOCKNUT, LOCK
-
118427-602 NUT, LOCKNUT, LOCK
-
128450-109 WASHERWASHER
-
138408-620 SCREW, CAPSCREW, CAP
-
148408-630 SCREW, CAPSCREW, CAP
-
153604-274 STRAP, LIMITERSTRAP, LIMITER
-
163604-234 AXLE, FRONT SLIDERAXLE, FRONT SLIDER
-
173604-233 BUSHING, FLAREDBUSHING, FLARED
-
188408-041 SCREW, CAPSCREW, CAP
-
193604-334 SHOCK ABSORBERSHOCK ABSORBER
-
201604-791 BUSHING, SHOCK - 0.890 X 0.800BUSHING, SHOCK - 0.890 X 0.800
-
213604-273 AXLEAXLE
-
228408-050 SCREW, CAPSCREW, CAP
-
238427-002 NUT, LOCKNUT, LOCK
-
241603-889 RETAINER, SPRINGRETAINER, SPRING
-
252603-719 RETAINER, SPRINGRETAINER, SPRING
-
261704-236 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
-
270604-790 COVER, SHOCKCOVER, SHOCK
