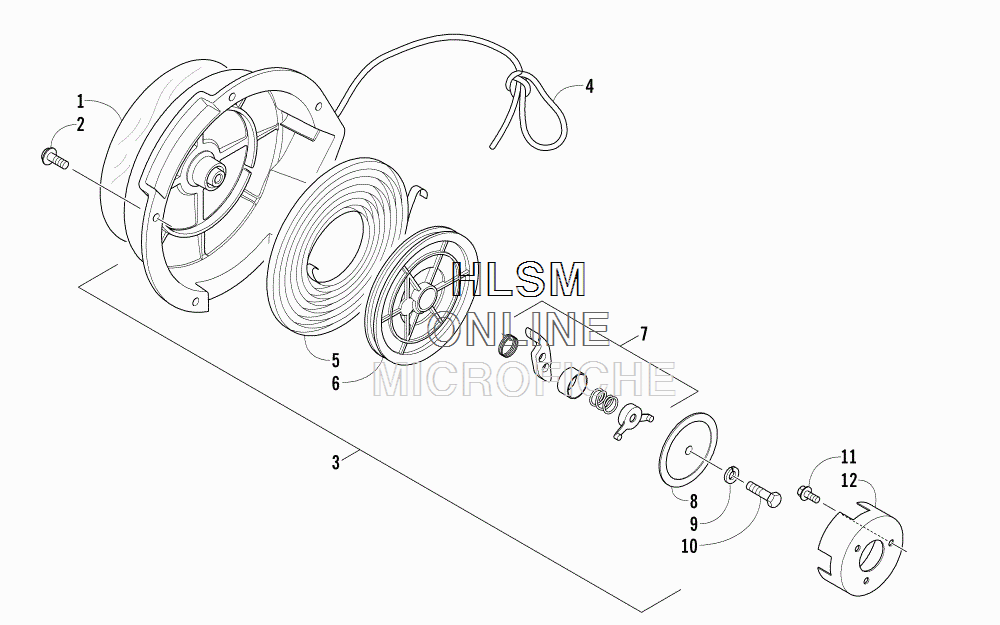

RECOIL STARTER для Arctic Cat M 6000 SE ES 141 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
14606-425 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
20923-024 SCREW, CAPSCREW, CAP
-
30920-001 STARTER ASSEMBLY (INC. 4-10)STARTER ASSEMBLY (INC. 4-10)
-
43006-889 ...ROPE, STARTER (6 MM DIA.) (203 CM)...ROPE, STARTER (6 MM DIA.) (203 CM)
-
50920-015 ...SPRING...SPRING
-
60920-016 ...ROLLER, STARTER...ROLLER, STARTER
-
70920-018 ...RATCHET SET...RATCHET SET
-
80920-017 ...PLATE, FRICTION...PLATE, FRICTION
-
98051-247 ...WASHER, LOCK...WASHER, LOCK
-
108408-826 ...SCREW, CAP...SCREW, CAP
-
110923-023 SCREW, CAPSCREW, CAP
-
120920-002 PULLEY, STARTERPULLEY, STARTER
