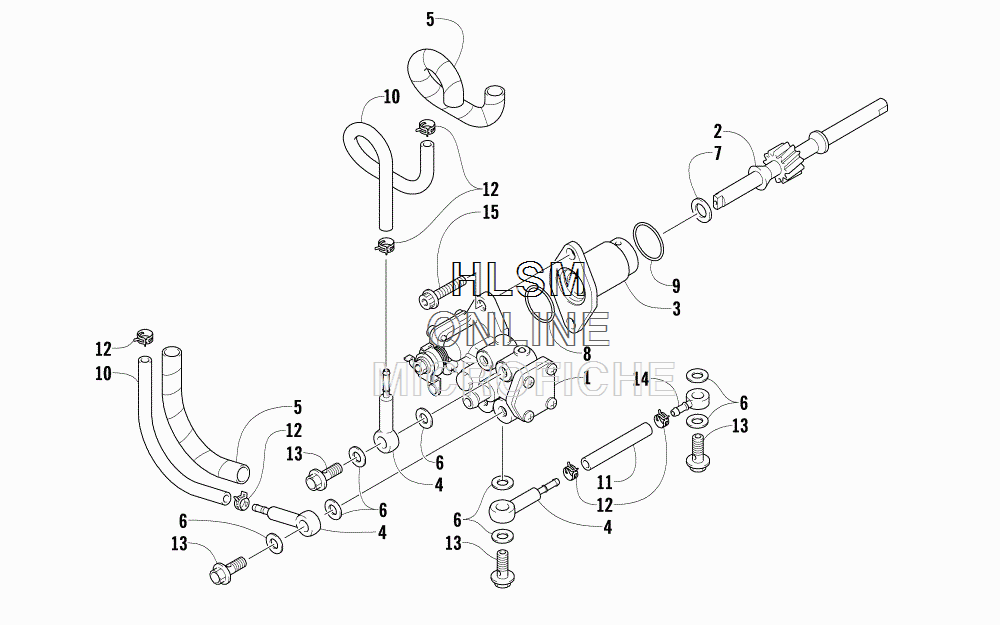

OIL PUMP для Arctic Cat M 8000 HARD CORE MOUNTAIN CAT 162 GREEN INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
13007-894 PUMP, OILPUMP, OIL
-
23007-895 GEAR, DRIVENGEAR, DRIVEN
-
33007-916 RETAINER, OIL PUMP INPUT SHAFTRETAINER, OIL PUMP INPUT SHAFT
-
43003-217 CHECK VALVECHECK VALVE
-
53005-032 PROTECTORPROTECTOR
-
63402-009 WASHER, DRIVENWASHER, DRIVEN
-
73423-300 SHIMSHIM
-
83008-030 O-RINGO-RING
-
93005-126 O-RINGO-RING
-
103008-035 HOSEHOSE
-
113005-357 HOSEHOSE
-
123008-037 CLAMP, HOSECLAMP, HOSE
-
133004-346 BOLT, UNIONBOLT, UNION
-
143003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
153007-445 SCREW, CAPSCREW, CAP
