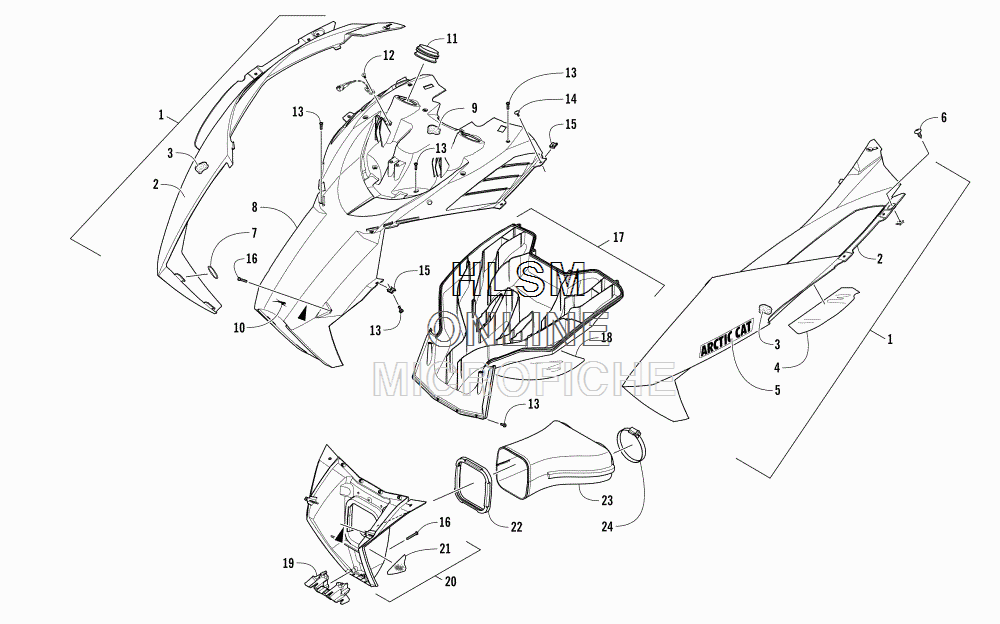

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 8000 LTD 153 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
15718-086 HOOD - W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5)HOOD - W/DECALS - RIGHT - BLACK (INC. 2-3 AND 5)
-
15718-087 HOOD - W/DECALS - LEFT - BLACK (INC. 2-5)HOOD - W/DECALS - LEFT - BLACK (INC. 2-5)
-
23718-588 ...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)...HOOD W/O DECALS - RIGHT - BLACK (INC. 3)
-
23718-589 ...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)...HOOD W/O DECALS - LEFT - BLACK (INC. 3-4)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE - HOOD - LEFT......FOIL, PROTECTIVE - HOOD - LEFT
-
52621-352 ...DECAL, HOOD - FORWARD...DECAL, HOOD - FORWARD
-
62623-163 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
71623-960 O-RINGO-RING
-
85706-356 PLENUM, INTAKE - UPPER (INC. 9)PLENUM, INTAKE - UPPER (INC. 9)
-
90617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
104411-479 DECAL, AIRCATDECAL, AIRCAT
-
116606-386 SEALSEAL
-
120623-165 CLIP, RETAININGCLIP, RETAINING
-
131623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
151623-939 NUT, UNUT, U
-
161623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
176706-151 PLENUM, INTAKE - LOWER REAR (INC. 18)PLENUM, INTAKE - LOWER REAR (INC. 18)
-
187606-307 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
196606-822 RETAINER, PLENUMRETAINER, PLENUM
-
205706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 21)
-
210621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
220617-624 ADAPTER, BOOTADAPTER, BOOT
-
232670-328 BOOTBOOT
-
240423-018 CLAMP, HOSECLAMP, HOSE
