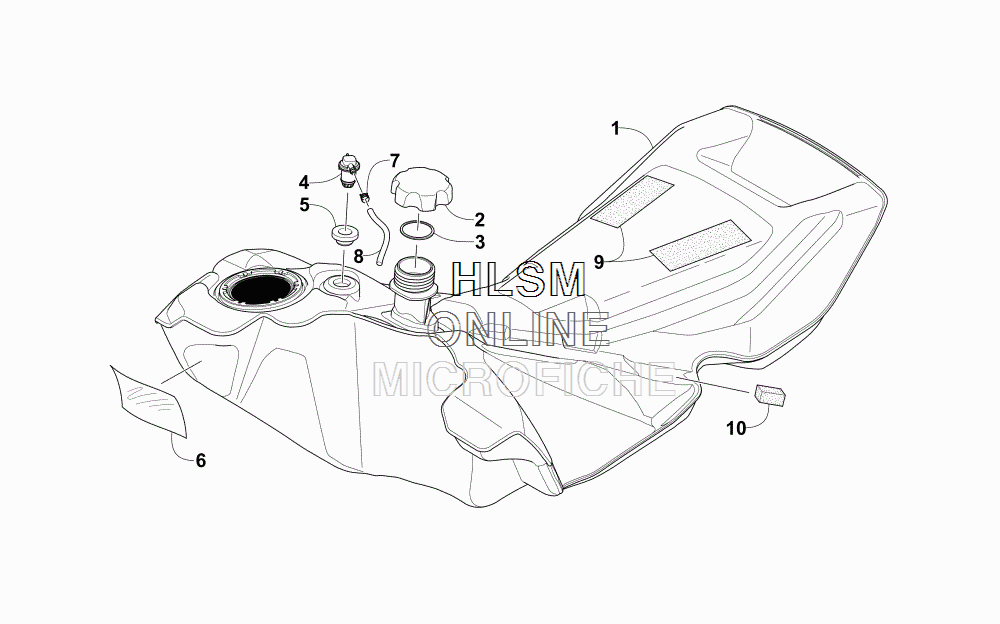

GAS TANK ASSEMBLY для Arctic Cat M 8000 LTD 162 (3.0) BLACK - 2017 года выпуска
-
№АртикулНазвание
-
11770-032 TANK, GAS - ASSEMBLY (INC. 2-5)TANK, GAS - ASSEMBLY (INC. 2-5)
-
22670-153 ...CAP, GAS TANK - ASSEMBLY (INC. 3)...CAP, GAS TANK - ASSEMBLY (INC. 3)
-
30109-733 ......SEAL, TANK CAP......SEAL, TANK CAP
-
41670-787 ...VALVE, CHECK...VALVE, CHECK
-
51670-822 ...GROMMET...GROMMET
-
60619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
71623-233 CLAMP, HOSECLAMP, HOSE
-
86101-009 HOSE - 50 FTHOSE - 50 FT
-
96606-849 VELCROVELCRO
-
100617-667 PAD, FOAMPAD, FOAM
