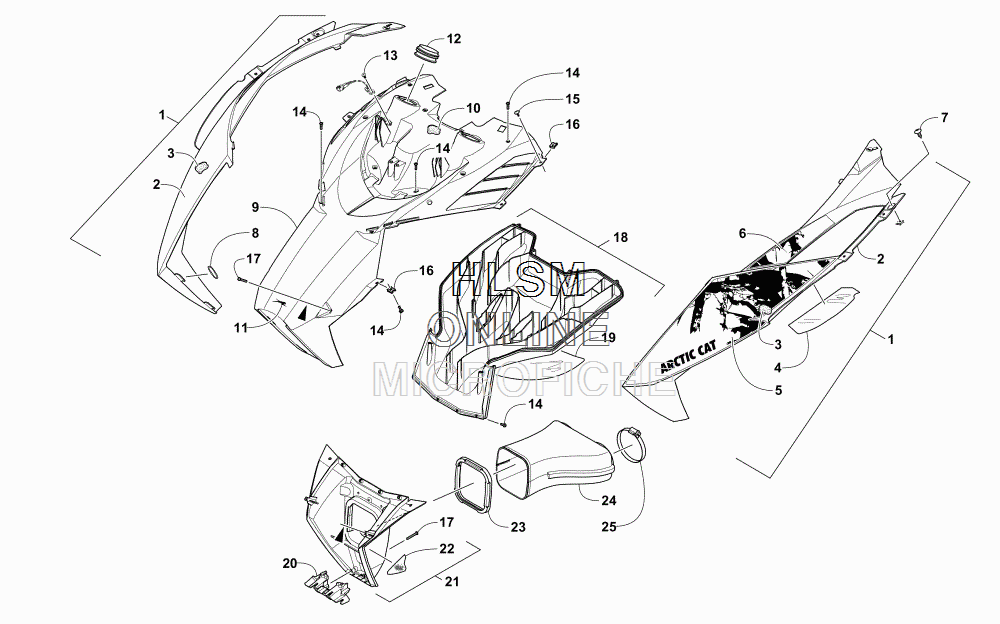

HOOD AND AIR INTAKE ASSEMBLY для Arctic Cat M 8000 LTD ES 153 (3.0) ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
15718-162 HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, AND 5-6)HOOD W/DECALS - RIGHT - WHITE (INC. 2-3, AND 5-6)
-
15718-163 HOOD W/DECALS - LEFT - WHITE (INC. 2-6)HOOD W/DECALS - LEFT - WHITE (INC. 2-6)
-
23718-612 ...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)...HOOD W/O DECALS - RIGHT - WHITE (INC. 3)
-
23718-613 ...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)...HOOD W/O DECALS - LEFT - WHITE (INC. 3-4)
-
30617-646 ......FOAM, HOOD - RIGHT......FOAM, HOOD - RIGHT
-
30617-647 ......FOAM, HOOD - LEFT......FOAM, HOOD - LEFT
-
46606-407 ......FOIL, PROTECTIVE - HOOD - LEFT......FOIL, PROTECTIVE - HOOD - LEFT
-
53621-400 ...DECAL, HOOD - FRONT RIGHT...DECAL, HOOD - FRONT RIGHT
-
53621-401 ...DECAL, HOOD - FRONT LEFT...DECAL, HOOD - FRONT LEFT
-
63621-546 ...DECAL, HOOD - REAR - RIGHT...DECAL, HOOD - REAR - RIGHT
-
63621-547 ...DECAL, HOOD - REAR - LEFT...DECAL, HOOD - REAR - LEFT
-
72623-163 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81623-960 O-RINGO-RING
-
95706-356 PLENUM, INTAKE - UPPER (INC. 10)PLENUM, INTAKE - UPPER (INC. 10)
-
100617-648 ...FOAM, INTAKE...FOAM, INTAKE
-
114411-479 DECAL, AIRCATDECAL, AIRCAT
-
126606-386 SEALSEAL
-
130623-165 CLIP, RETAININGCLIP, RETAINING
-
141623-933 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
161623-939 NUT, UNUT, U
-
171623-929 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
186706-151 PLENUM, INTAKE - LOWER REAR (INC. 19)PLENUM, INTAKE - LOWER REAR (INC. 19)
-
197606-307 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
206606-822 RETAINER, PLENUMRETAINER, PLENUM
-
215706-990 PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)PLENUM, AIR INTAKE - LOWER FRONT - W/REFLECTOR (INC. 22)
-
220621-989 ...DECAL, REFLECTOR - AMBER...DECAL, REFLECTOR - AMBER
-
230617-624 ADAPTER, BOOTADAPTER, BOOT
-
242670-328 BOOTBOOT
-
250423-018 CLAMP, HOSECLAMP, HOSE
