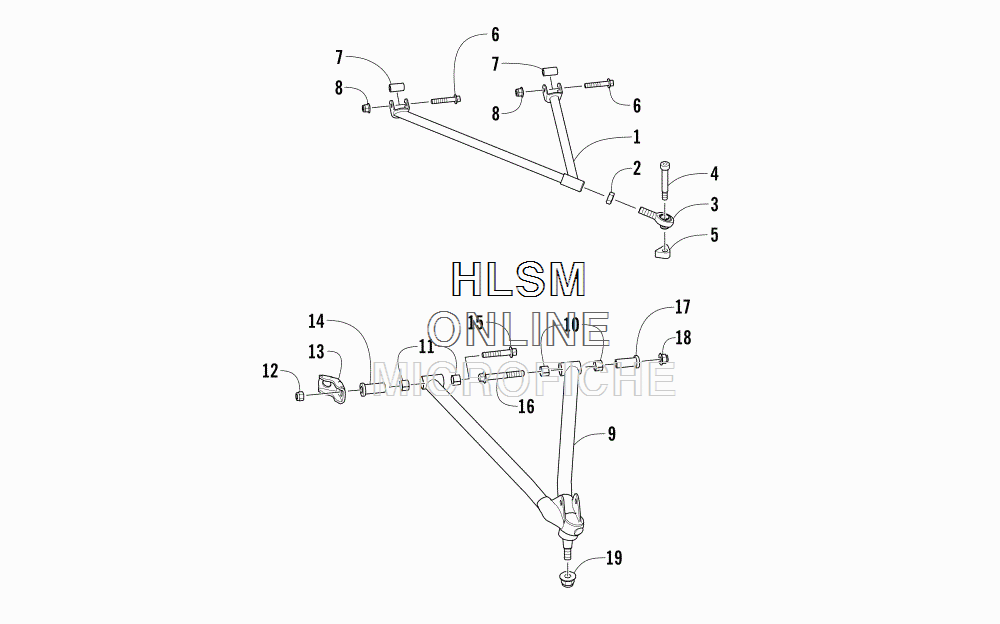

A-ARM ASSEMBLY для Arctic Cat M 8000 LTD ES 153 BLACK - 2017 года выпуска
-
№АртикулНазвание
-
13703-586 A-ARM, UPPER - GREEN (INC. 2-3)A-ARM, UPPER - GREEN (INC. 2-3)
-
28420-202 ...NUT...NUT
-
31605-151 ...BEARING, END...BEARING, END
-
42623-067 SCREW, SHOULDERSCREW, SHOULDER
-
52623-066 TRI NUTTRI NUT
-
68413-645 SCREW, CAPSCREW, CAP
-
73603-258 AXLEAXLE
-
88437-604 NUT, LOCKNUT, LOCK
-
93703-590 A-ARM, LOWER RIGHT - GREEN (INC. TWO NO. 10-11)A-ARM, LOWER RIGHT - GREEN (INC. TWO NO. 10-11)
-
93703-591 A-ARM, LOWER LEFT - GREEN (INC. TWO NO. 10-11)A-ARM, LOWER LEFT - GREEN (INC. TWO NO. 10-11)
-
101603-895 ...BEARING...BEARING
-
112603-911 ...BEARING...BEARING
-
121623-965 NUT, LOCKNUT, LOCK
-
132603-909 BRACE, LOWER A-ARM - FRONTBRACE, LOWER A-ARM - FRONT
-
142603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
151623-953 SCREW, CAPSCREW, CAP
-
168409-075 SCREW, CAPSCREW, CAP
-
173603-259 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
188427-002 NUT, LOCKNUT, LOCK
-
198427-202 NUT, LOCKNUT, LOCK
