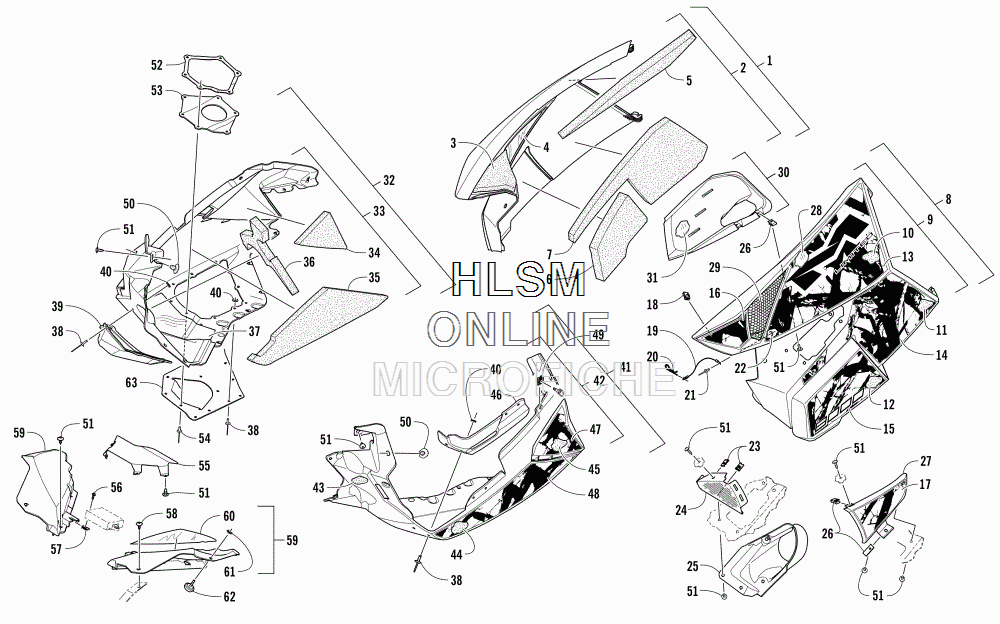

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 LTD ES 153 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
15718-160 PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-7, 13-17, AND 19-22)PANEL, SIDE - RIGHT W/DECALS - WHITE (INC. 2-7, 13-17, AND 19-22)
-
23718-438 ...PANEL, SIDE - W/O DECALS - RIGHT - WHITE (INC. 3-7 AND 19-22)...PANEL, SIDE - W/O DECALS - RIGHT - WHITE (INC. 3-7 AND 19-22)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE - MIDDLE - RIGHT......FOIL, PROTECTIVE - MIDDLE - RIGHT
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
85718-161 PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 9-22)PANEL, SIDE - LEFT W/DECALS - WHITE (INC. 9-22)
-
94718-555 ...PANEL, SIDE - W/O DECALS - LEFT - WHITE (INC. 10-12 AND 18-22)...PANEL, SIDE - W/O DECALS - LEFT - WHITE (INC. 10-12 AND 18-22)
-
100617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
110617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
120617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
133621-416 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
133621-417 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
143621-414 ...DECAL, SIDE PANEL - LOWER - RIGHT...DECAL, SIDE PANEL - LOWER - RIGHT
-
143621-415 ...DECAL, SIDE PANEL - LOWER - LEFT...DECAL, SIDE PANEL - LOWER - LEFT
-
153621-406 ...DECAL, SIDE PANEL - "8000" - RIGHT...DECAL, SIDE PANEL - "8000" - RIGHT
-
153621-407 ...DECAL, SIDE PANEL - "8000" - LEFT...DECAL, SIDE PANEL - "8000" - LEFT
-
163621-408 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
163621-409 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
173621-410 ...DECAL, SIDE PANEL - MID - RIGHT...DECAL, SIDE PANEL - MID - RIGHT
-
173621-419 ...DECAL, SIDE PANEL VENT - LEFT...DECAL, SIDE PANEL VENT - LEFT
-
181623-637 ...CLIP, U-NUT...CLIP, U-NUT
-
190607-447 ...CABLE...CABLE
-
200605-283 ...CLIP, HAIRPIN...CLIP, HAIRPIN
-
218060-486 ...RIVET...RIVET
-
228050-127 ...WASHER...WASHER
-
231623-052 CLIP, U-NUTCLIP, U-NUT
-
246606-925 SCREEN, INTAKESCREEN, INTAKE
-
252602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
261623-030 CLIP, U-NUTCLIP, U-NUT
-
272602-803 DUCT, INTAKE - OUTER - WHITEDUCT, INTAKE - OUTER - WHITE
-
280619-206 FOIL, PROTECTIVE (OPT.)FOIL, PROTECTIVE (OPT.)
-
295706-531 SCREEN, INTAKE - (OPT.)SCREEN, INTAKE - (OPT.)
-
301702-369 DUCT, BELT COOLING (INC. 31)DUCT, BELT COOLING (INC. 31)
-
316606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
325718-158 PLATE, SKID - W/DECALS - RIGHT - WHITE (INC. 33-40 AND 47-48)PLATE, SKID - W/DECALS - RIGHT - WHITE (INC. 33-40 AND 47-48)
-
335718-198 ...PLATE, SKID - W/O DECALS - RIGHT - WHITE (INC. 34-40)...PLATE, SKID - W/O DECALS - RIGHT - WHITE (INC. 34-40)
-
340617-640 ......FOAM, SKID PLATE - UPPER REAR - RIGHT......FOAM, SKID PLATE - UPPER REAR - RIGHT
-
350617-638 ......FOAM, SKID PLATE - CENTER FRONT - RIGHT......FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
360617-636 ......FOAM, SKID PLATE - UPPER FRONT - RIGHT......FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
372612-970 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
388061-688 ......RIVET......RIVET
-
392612-754 ......DEFLECTOR, HEAT......DEFLECTOR, HEAT
-
400123-802 ......WASHER......WASHER
-
415718-159 PLATE, SKID - W/DECALS - LEFT - WHITE (INC. 38, 40, AND 42-48)PLATE, SKID - W/DECALS - LEFT - WHITE (INC. 38, 40, AND 42-48)
-
423718-789 ...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)...PLATE, SKID - LEFT W/FOAM - BLACK (INC. 38, 40, AND 43-46)
-
430617-637 ......FOAM, SKID PLATE - UPPER FRONT - LEFT......FOAM, SKID PLATE - UPPER FRONT - LEFT
-
440617-639 ......FOAM, SKID PLATE - CENTER FRONT - LEFT......FOAM, SKID PLATE - CENTER FRONT - LEFT
-
450617-641 ......FOAM, SKID PLATE - UPPER REAR - LEFT......FOAM, SKID PLATE - UPPER REAR - LEFT
-
466606-613 ......PANEL, REINFORCEMENT......PANEL, REINFORCEMENT
-
473621-396 ...DECAL, SKID PLATE - RIGHT - WHITE...DECAL, SKID PLATE - RIGHT - WHITE
-
473621-397 ...DECAL, SKID PLATE - LEFT - WHITE...DECAL, SKID PLATE - LEFT - WHITE
-
483621-398 ...DECAL, SKID PLATE - FRONT - RIGHT...DECAL, SKID PLATE - FRONT - RIGHT
-
483621-399 ...DECAL, SKID PLATE - FRONT - LEFT...DECAL, SKID PLATE - FRONT - LEFT
-
492623-005 CLIP, RETAININGCLIP, RETAINING
-
506606-592 PIN, RETAININGPIN, RETAINING
-
512623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
522612-972 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
532612-971 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
548061-710 RIVETRIVET
-
556606-295 SHIELD, HEAT - EMCSHIELD, HEAT - EMC
-
568408-620 SCREW, CAPSCREW, CAP
-
570423-031 NUT, SPEEDNUT, SPEED
-
582623-163 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
596606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
593718-303 FASCIA, FRONT - LEFT - BLACK (INC. 60)FASCIA, FRONT - LEFT - BLACK (INC. 60)
-
606606-405 ...FOIL, PROTECTIVE - FILLER PANEL - LH...FOIL, PROTECTIVE - FILLER PANEL - LH
-
612623-001 NUT, PUSHNUT, PUSH
-
621623-999 SCREW, THUMBSCREW, THUMB
-
631712-963 DEFLECTOR, EXHAUST OUTLET - BLACKDEFLECTOR, EXHAUST OUTLET - BLACK
