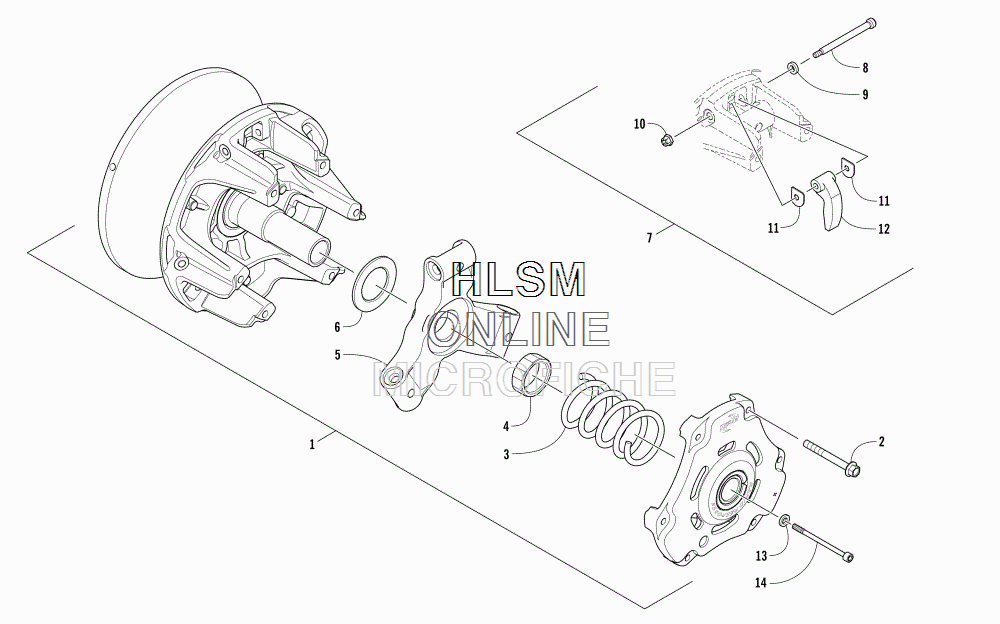

DRIVE CLUTCH для Arctic Cat M 8000 LTD ES 162 (3.0) ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
10746-881 CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)CLUTCH, DRIVE - UNCALIBRATED (INC. 2, 4-6, AND 8-11)
-
20646-950 ...SCREW, SHOULDER...SCREW, SHOULDER
-
30646-940 SPRING, DRIVE CLUTCHSPRING, DRIVE CLUTCH
-
40646-466 NUT, JAMNUT, JAM
-
50646-957 SPIDERSPIDER
-
60646-965 SHIM - 1.35X1.575X0.030SHIM - 1.35X1.575X0.030
-
60646-964 SHIM - 1.27X210X0.70SHIM - 1.27X210X0.70
-
60646-949 SHIM - 1.270X1.625X.120SHIM - 1.270X1.625X.120
-
77639-127 KIT, CAM ARM (INC. 8-11)KIT, CAM ARM (INC. 8-11)
-
80823-396 ...PIN, CAM ARM...PIN, CAM ARM
-
92623-091 ...WASHER...WASHER
-
100823-399 ...NUT, LOCK...NUT, LOCK
-
110646-880 ...WASHER, THRUST...WASHER, THRUST
-
120646-904 ARM, CAMARM, CAM
-
131623-649 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
142623-180 BOLT, CLUTCHBOLT, CLUTCH
