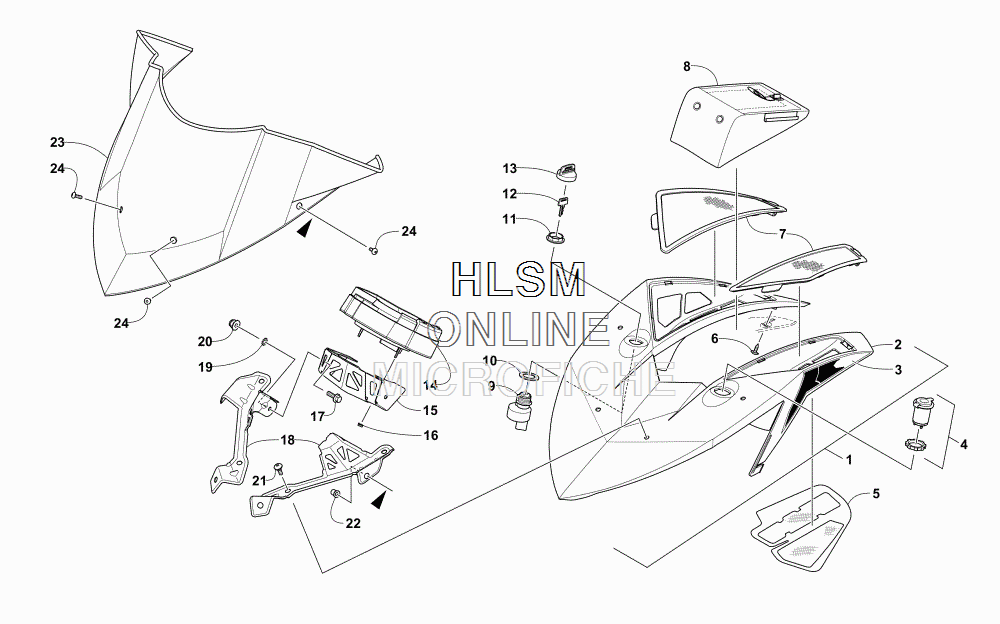

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 8000 MOUNTAIN CAT 153 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
15718-168 POD W/DECALS - GREEN (INC. 2-3)POD W/DECALS - GREEN (INC. 2-3)
-
25706-387 ...POD, INSTRUMENT - GREEN...POD, INSTRUMENT - GREEN
-
33621-570 ...DECAL, POD - RIGHT - GREEN...DECAL, POD - RIGHT - GREEN
-
33621-571 ...DECAL, POD - LEFT - GREEN...DECAL, POD - LEFT - GREEN
-
40641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
50608-688 SCREEN, INTAKE - RIGHTSCREEN, INTAKE - RIGHT
-
50608-689 SCREEN, INTAKE - LEFTSCREEN, INTAKE - LEFT
-
62623-166 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70608-736 VENT, INTAKE - RIGHTVENT, INTAKE - RIGHT
-
70608-737 VENT, INTAKE - LEFTVENT, INTAKE - LEFT
-
86606-566 BAG, GOGGLEBAG, GOGGLE
-
90609-910 SWITCH, IGNITION (INC. 10-13)SWITCH, IGNITION (INC. 10-13)
-
100630-264 ...WASHER...WASHER
-
110430-050 ...NUT, RETAINING...NUT, RETAINING
-
120430-042 ...KEY, IGNITION - Y SERIES (LEFT SIDE CUT)...KEY, IGNITION - Y SERIES (LEFT SIDE CUT)
-
120430-043 ...KEY, IGNITION - Z SERIES (RIGHT-SIDE CUT)...KEY, IGNITION - Z SERIES (RIGHT-SIDE CUT)
-
130430-054 ...COVER, KEY...COVER, KEY
-
140620-391 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
155706-252 BRACKET, SPEEDOMETER GAUGE - CENTER - BLACKBRACKET, SPEEDOMETER GAUGE - CENTER - BLACK
-
160423-493 NUT W/WASHERNUT W/WASHER
-
178410-616 SCREW, CAPSCREW, CAP
-
185706-250 BRACKET, SPEEDOMETER GAUGE - RIGHT - BLACKBRACKET, SPEEDOMETER GAUGE - RIGHT - BLACK
-
185706-251 BRACKET, SPEEDOMETER GAUGE - LEFT - BLACKBRACKET, SPEEDOMETER GAUGE - LEFT - BLACK
-
198053-212 WASHER, EXTERNAL TOOTH LOCKWASHER, EXTERNAL TOOTH LOCK
-
208427-602 NUT, LOCKNUT, LOCK
-
210423-355 SCREW, SHOULDERSCREW, SHOULDER
-
221623-764 NUT, EXPANSIONNUT, EXPANSION
-
236606-376 WINDSHIELD - LOW - BLACKWINDSHIELD - LOW - BLACK
-
248477-516 SCREW, MACHINESCREW, MACHINE
