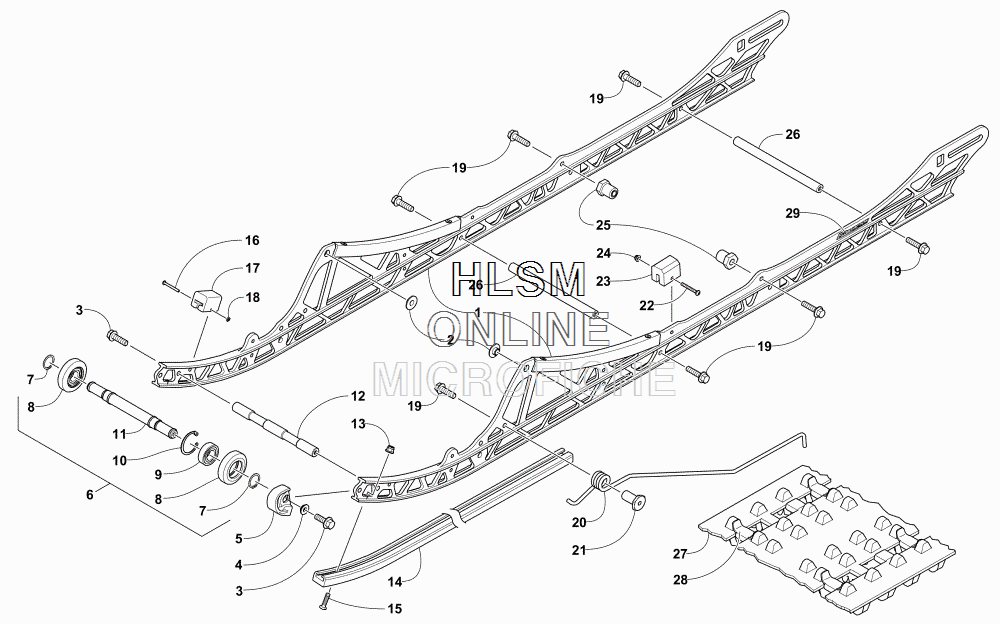

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat M 8000 MOUNTAIN CAT 162 GREEN - 2017 года выпуска
-
№АртикулНазвание
-
-3704-079 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13704-048 RAIL, FORMED - BLACKRAIL, FORMED - BLACK
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW, CAPSCREW, CAP
-
43604-928 SPACERSPACER
-
54604-214 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
62704-964 AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)AXLE, IDLER WHEEL - ASSEMBLY (INC. 7-11)
-
71423-001 ...RING, RETAINING...RING, RETAINING
-
83604-844 ...WHEEL, IDLER - BLACK (INC. 9-10)...WHEEL, IDLER - BLACK (INC. 9-10)
-
93604-033 ......BEARING......BEARING
-
100623-946 ......RING, RETAINING......RING, RETAINING
-
113604-921 ...AXLE...AXLE
-
123604-630 AXLEAXLE
-
138047-366 NUT, LOCKNUT, LOCK
-
144604-242 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
150123-859 SCREW, MACHINESCREW, MACHINE
-
160123-767 RIVET, SOLIDRIVET, SOLID
-
170104-631 PAD, SHOCKPAD, SHOCK
-
180123-766 NUT, PUSHNUT, PUSH
-
198408-826 SCREW, CAPSCREW, CAP
-
201704-734 SCRATCHER, ICE - RIGHTSCRATCHER, ICE - RIGHT
-
201704-735 SCRATCHER, ICE - LEFTSCRATCHER, ICE - LEFT
-
213604-678 BUSHINGBUSHING
-
228470-540 SCREW, MACHINESCREW, MACHINE
-
231604-429 PAD, SHOCKPAD, SHOCK
-
248427-502 NUT, LOCKNUT, LOCK
-
253604-635 BUSHING, STOPBUSHING, STOP
-
264604-252 AXLEAXLE
-
272602-857 TRACK ASSEMBLY (INC. 28)TRACK ASSEMBLY (INC. 28)
-
282602-386 ...CLIP, GUIDE...CLIP, GUIDE
-
292621-930 DECAL, "FLOAT ACTION"DECAL, "FLOAT ACTION"
