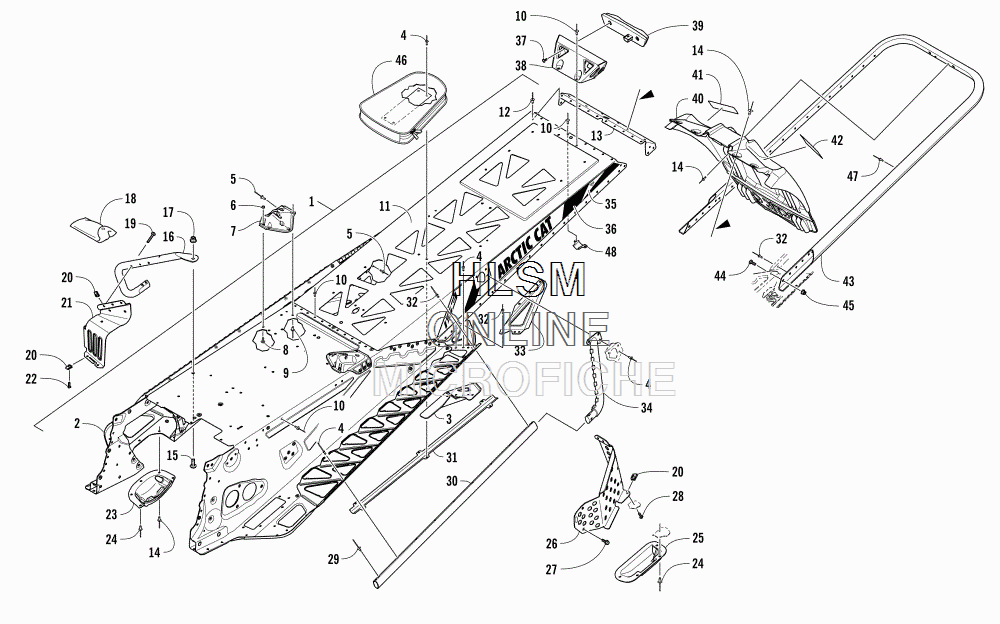

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 SNO PRO 153 GREEN INTERNATIONAL - 2017 года выпуска
-
№АртикулНазвание
-
-2707-184 COMPLETE CHASSIS ASSEMBLY GREENCOMPLETE CHASSIS ASSEMBLY GREEN
-
12707-353 TUNNEL ASSEMBLY - GREEN (INC. 2-13)TUNNEL ASSEMBLY - GREEN (INC. 2-13)
-
22707-345 ...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - GREEN (INC. 3-4)
-
32707-342 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN......BRACKET, MOUNTING - SUSPENSION - RIGHT - GREEN
-
32707-343 ......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN......BRACKET, MOUNTING - SUSPENSION - LEFT - GREEN
-
48060-686 ......RIVET ZINC......RIVET ZINC
-
51623-206 ...RIVET...RIVET
-
68422-502 ...NUT...NUT
-
72707-124 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN...BRACKET, MOUNTING - REAR SPAR - RIGHT - GREEN
-
72707-125 ...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN...BRACKET, MOUNTING - REAR SPAR - LEFT - GREEN
-
88476-512 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-257 ...RIVET...RIVET
-
108060-682 ...RIVET ZINC...RIVET ZINC
-
112707-350 ...TUNNEL, REAR - GREEN...TUNNEL, REAR - GREEN
-
128060-482 ...RIVET...RIVET
-
132707-315 ...END CAP, TUNNEL - GREEN...END CAP, TUNNEL - GREEN
-
148061-706 RIVET BLACKRIVET BLACK
-
158476-820 SCREW, MACHINESCREW, MACHINE
-
161707-454 SUPPORT, FOOTREST - RIGHTSUPPORT, FOOTREST - RIGHT
-
161707-455 SUPPORT, FOOTREST - LEFTSUPPORT, FOOTREST - LEFT
-
178427-802 NUTNUT
-
180744-087 KIT, TOOLKIT, TOOL
-
198468-535 SCREW, MACHINESCREW, MACHINE
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
212707-820 FOOTREST - RIGHT - GREENFOOTREST - RIGHT - GREEN
-
212707-821 FOOTREST - LEFT - GREENFOOTREST - LEFT - GREEN
-
228470-516 SCREW, MACHINESCREW, MACHINE
-
231607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
248061-708 RIVET BLACKRIVET BLACK
-
250607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
262707-042 SHIELD, BRAKE DISC - GREENSHIELD, BRAKE DISC - GREEN
-
278408-613 SCREW, CAPSCREW, CAP
-
288470-520 SCREW, MACHINESCREW, MACHINE
-
291623-130 RIVETRIVET
-
302707-346 ROLL, TUNNEL - GREENROLL, TUNNEL - GREEN
-
310630-307 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
-
321623-241 RIVETRIVET
-
332707-336 GUSSET, RUNNING BOARD - RIGHT - GREENGUSSET, RUNNING BOARD - RIGHT - GREEN
-
332707-337 GUSSET, RUNNING BOARD - LEFT - GREENGUSSET, RUNNING BOARD - LEFT - GREEN
-
342707-338 GUSSET, TUNNEL ROLL - RIGHT - GREENGUSSET, TUNNEL ROLL - RIGHT - GREEN
-
342707-339 GUSSET, TUNNEL ROLL - LEFT - GREENGUSSET, TUNNEL ROLL - LEFT - GREEN
-
350621-990 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
363621-228 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
363621-229 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
378470-510 SCREW, MACHINESCREW, MACHINE
-
380730-230 BRACKET, MOUNTING - TAILLIGHT - GREENBRACKET, MOUNTING - TAILLIGHT - GREEN
-
390609-898 TAILLIGHT, LEDTAILLIGHT, LED
-
406606-394 SNOWFLAPSNOWFLAP
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
432707-590 BUMPER, REAR - BLACKBUMPER, REAR - BLACK
-
448476-620 SCREW, MACHINESCREW, MACHINE
-
458427-602 NUT, LOCKNUT, LOCK
-
466606-615 BAG, BELTBAG, BELT
-
478060-706 RIVET BLACKRIVET BLACK
-
480630-292 PROTECTOR, TAILLIGHT HARNESSPROTECTOR, TAILLIGHT HARNESS
