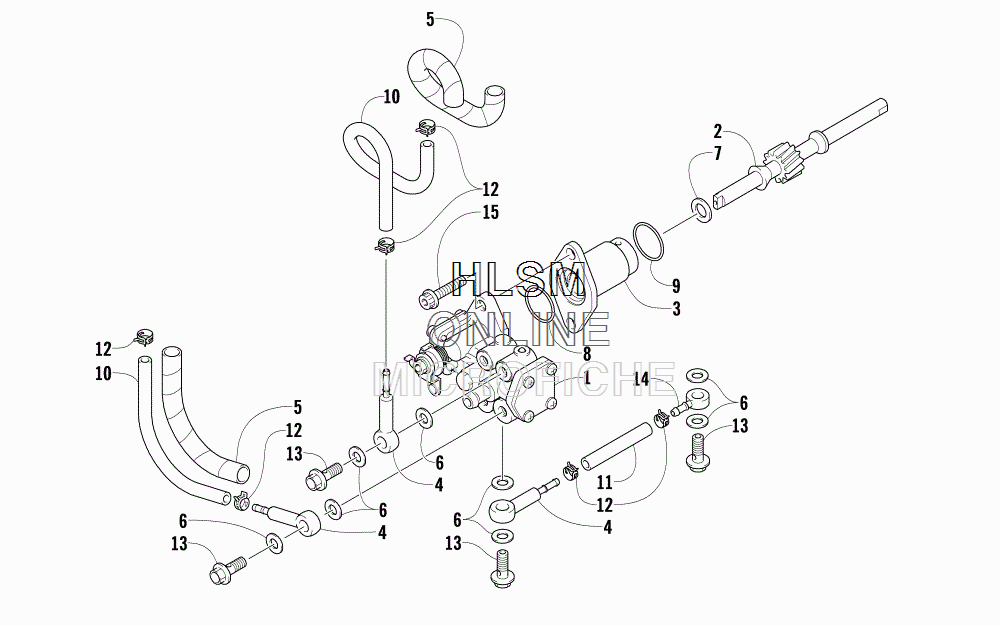

OIL PUMP для Arctic Cat M 8000 SNO PRO 153 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
13007-894 PUMP, OILPUMP, OIL
-
23007-895 GEAR, DRIVENGEAR, DRIVEN
-
33007-916 RETAINER, OIL PUMP INPUT SHAFTRETAINER, OIL PUMP INPUT SHAFT
-
43003-217 CHECK VALVECHECK VALVE
-
53005-032 PROTECTORPROTECTOR
-
63402-009 WASHER, DRIVENWASHER, DRIVEN
-
73423-300 SHIMSHIM
-
83008-030 O-RINGO-RING
-
93005-126 O-RINGO-RING
-
103008-035 HOSEHOSE
-
113005-357 HOSEHOSE
-
123008-037 CLAMP, HOSECLAMP, HOSE
-
133004-346 BOLT, UNIONBOLT, UNION
-
143003-661 UNION, GEAR LUBEUNION, GEAR LUBE
-
153007-445 SCREW, CAPSCREW, CAP
Все узлы модели:
- A-ARM ASSEMBLY
- BELT GUARD ASSEMBLY
- CHAIN CASE ASSEMBLY
- CONSOLE ASSEMBLY
- COOLING ASSEMBLY
- CRANKCASE ASSEMBLY
- CYLINDER AND HEAD ASSEMBLY
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSEMBLY
- FRONT BUMPER AND FRAME ASSEMBLY
- FRONT SUSPENSION SHOCK ABSORBER
- FUEL PUMP ASSEMBLY
- GAS TANK ASSEMBLY
- HANDLEBAR AND CONTROLS
- HEADLIGHT AND WIRING ASSEMBLIES
- HOOD AND AIR INTAKE ASSEMBLY
- HYDRAULIC BRAKE CONTROL ASSEMBLY
- IDLER WHEEL ASSEMBLY
- MAGNETO
- • OIL PUMP
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSEMBLY
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSEMBLY
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSEMBLY
- SEAT ASSEMBLY
- SERVOMOTOR ASSEMBLY
- SKI AND SPINDLE ASSEMBLY
- SKID PLATE AND SIDE PANEL ASSEMBLY
- SLIDE RAIL AND TRACK ASSEMBLY
- STEERING POST ASSEMBLY
- STEERING SUPPORT ASSEMBLY
- THROTTLE BODY ASSEMBLY
- TIE ROD ASSEMBLY
- TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY
- WATER PUMP AND THERMOSTAT
- WINDSHIELD AND INSTRUMENTS ASSEMBLIES
