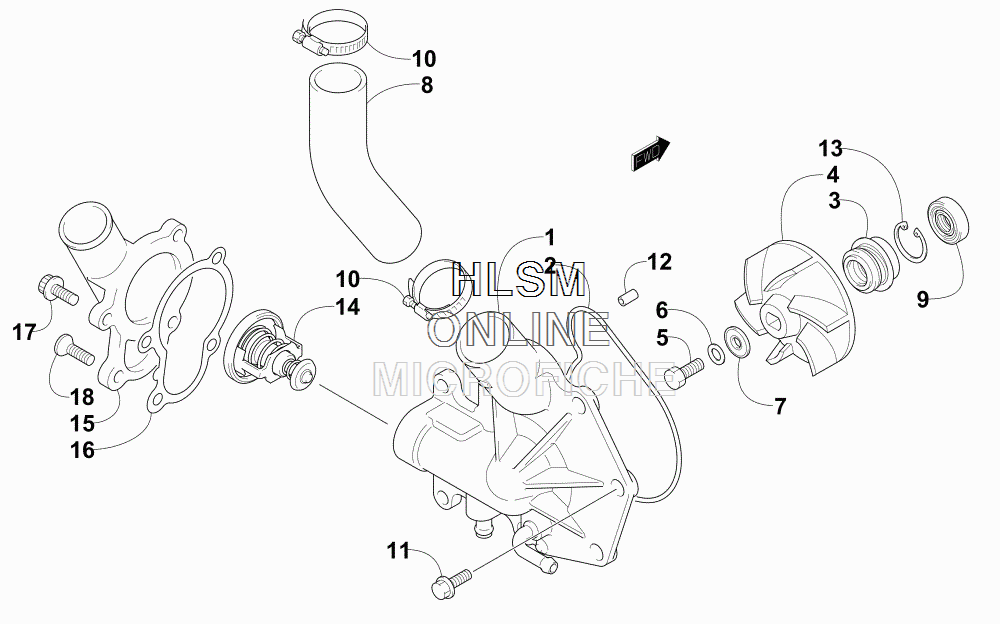

WATER PUMP AND THERMOSTAT для Arctic Cat M 8000 SNO PRO 162 ORANGE - 2017 года выпуска
-
№АртикулНазвание
-
13007-540 COVER, WATER PUMPCOVER, WATER PUMP
-
23007-541 O-RING, COVERO-RING, COVER
-
33007-180 SEALSEAL
-
43007-896 IMPELLERIMPELLER
-
53003-426 BOLT, SHAFTBOLT, SHAFT
-
63003-431 WASHER, SHAFTWASHER, SHAFT
-
73003-432 WASHERWASHER
-
83007-542 HOSE, WATER INLETHOSE, WATER INLET
-
93007-431 SEAL, OILSEAL, OIL
-
103004-786 CLAMPCLAMP
-
113007-409 BOLTBOLT
-
123005-899 PIN, DOWELPIN, DOWEL
-
133007-714 CIRCLIP, BEARING - FASTENERCIRCLIP, BEARING - FASTENER
-
143007-041 THERMOSTAT, WATERTHERMOSTAT, WATER
-
153007-304 HOUSING, THERMOSTATHOUSING, THERMOSTAT
-
163007-543 GASKET, THERMOSTAT CAPGASKET, THERMOSTAT CAP
-
173007-446 BOLT, THERMOSTAT CAPBOLT, THERMOSTAT CAP
-
183007-306 SCREW, MACHINESCREW, MACHINE
